MC33274ADR2G

monolithic operational amplifiers, innovative Bipolar design concepts, patented Zip−R−Trim element

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.60

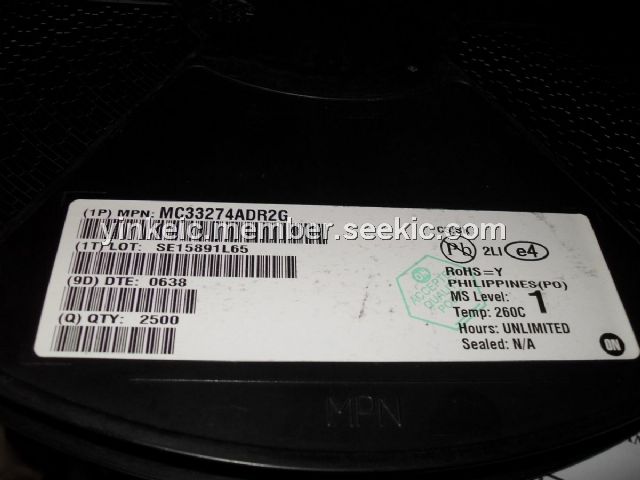

PartNumber:: MC33274ADR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Nici's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-21

From Other Seller

Part Number:MC33274ADR2G
US $0.50 - 0.60
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

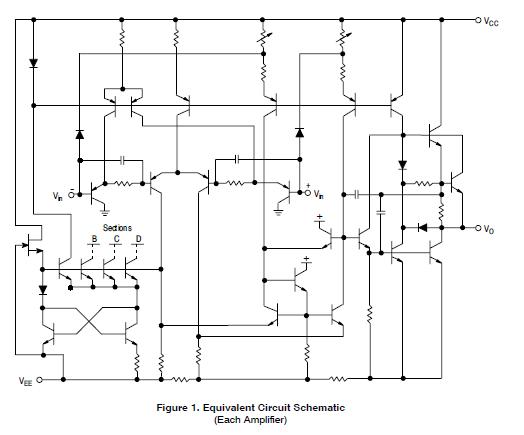

The MC33274ADR2G series of monolithic operational amplifiers are quality fabricated with innovative Bipolar design concepts. This dual and quad operational amplifier series incorporates Bipolar inputs along with a patented Zip-R-Trim element for input offset voltage reduction. The MC33274ADR2G series of operational amplifiers exhibits low input offset voltage and high gain bandwidth product. Dual-doublet frequency compensation is used to increase the slew rate while maintaining low input noise characteristics. Its all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, and an excellent phase and gain margin. It also provides a low open loop high frequency output impedance with symmetrical source and sink AC frequency performance.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: +36 V; (2)Input Differential Voltage Range: 1 V; (3)Input Voltage Range: 1 V; (4)Output Short Circuit Duration: Indefinite sec; (5)Maximum Junction Temperature: +150 ℃; (6)Storage Temperature: -60 to +150 ℃; (7)ESD Protection at Any Pin: Human Body Model: 2000 V, Machine Model: 200 V; (8)Operating Temperature Range: -40 to +85 ℃.

Features

Features: (1)Input Offset Voltage Trimmed to 100 μV (Typ); (2)Low Input Bias Current: 300 nA; (3)Low Input Offset Current: 3.0 nA; (4)High Input Resistance: 16 MΩ; (5)High Gain Bandwidth Product: 24 MHz @ 100 kHz; (6)High Slew Rate: 10 V/μs; (7)Power Bandwidth: 160 kHz; (8)Excellent Frequency Stability; (9)Unity Gain Stable: w/Capacitance Loads to 500 pF; (10)Large Output Voltage Swing: +14.1 V/ .14.6 V; (11)Low Total Harmonic Distortion: 0.003%; (12)Power Supply Drain Current: 2.15 mA per Amplifier; (13)Single or Split Supply Operation: +3.0 V to +36 V or ±1.5 V to ±18 V; (14)ESD Diodes Provide Added Protection to the Inputs; (15)Pb.Free Packages are Available; (16)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes.
