Product Summary

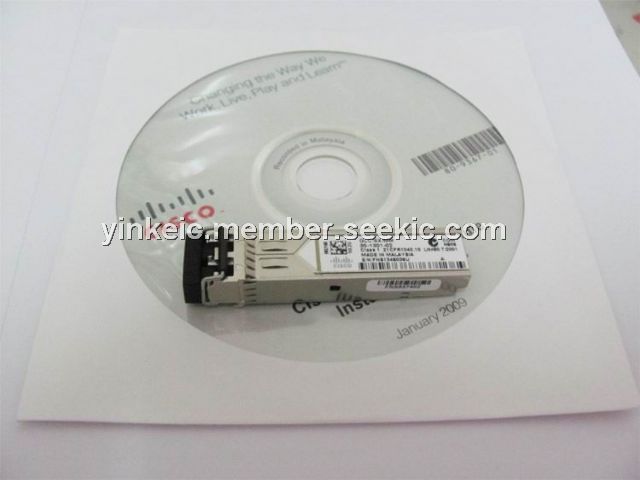

The GLC-SX-MM SFP transceiver is a high performance module that supports a data-rate of 1.25Gbps and can transmit data up to 550m over multi-mode fiber. The GLC-SX-MM is a very commonly used SFP transceiver that works with 850nm multimode fiber and is designed to use in 1000Base-SX applications. The GLC-SX-MM SFP features the small form factor duplex LC interface and is hot swappable for convenient, on-the-fly use in data closet applications. Applications of the GLC-SX-MM are: Gigabit Ethernet between switches, from switches to Wireless LAN Controllers, between switches and firewalls; Fiber Channel-Connecting servers to NAS or SAN devices.

Parametrics

GLC-SX-MM absolute maximum ratings: (1)Temperature: 32F (℃) to 122F (50℃) Operating; -40F (-40℃) to 185F (85℃) Storage; (2)Input Voltage: 3.1 V DC to 3.5 V DC Maximum; 3.3 V DC Typical; (3)Input Current: 300 mA Maximum; 200 mA Typical.

Features

GLC-SX-MM features: (1)Up to 1.25Gb/s bi-directional data links; (2)Duplex LC Connectors; (3)Hot-pluggable SFP footprint; (4)Built-in digital diagnostic functions; (5)850nm VCSEL laser transmitter; (6)Up to 550m on 50/125μm MMF; (7)Metal enclosure for lower EMI; (8)Single 3.3V power supply; (9)Low power dissipation <700mW typical.
