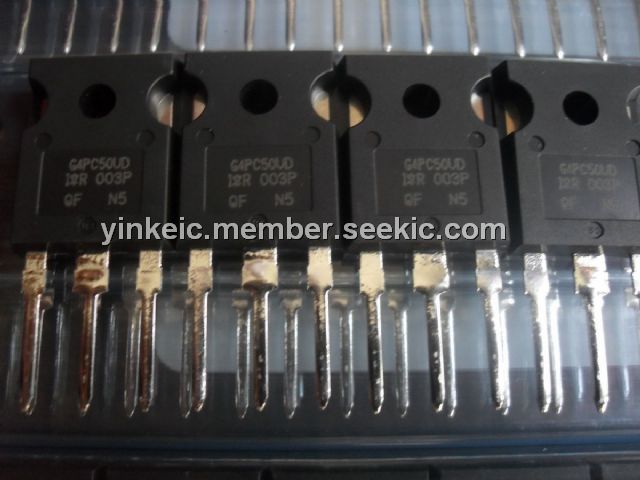

IRG4PC50UD

insulated gate bipolar transistor, TO-247, ultrafast soft recovery diode

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~2.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~2.70

PartNumber:: IRG4PC50UD

Brand:: International Rectifier - IR | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Nici's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-31

From Other Seller

Part Number:IRG4PC50UD
US $2.50 - 2.70
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRG4PC50UD is insulated gate bipolar transistor with ultrafast soft recovery diode. It is generation 4 IGBT which offers highest efficiencies. This IGBT is able to optimize for specific application conditions. What is more, HEXFRED diodes optimized for performance with IGBT. It is featured with minimized recovery characteristics require less/no snubbing. Lastly, it is designed to be a drop-in replacement for equivalent industry-standard Generation 3 IR IGBT.

Parametrics

Absolute maximum ratings:(1)Collector-to-Emitter Voltage, VCES: 600V; (2)Continuous Collector Current, IC at TC = 25℃: 55A; (3)Continuous Collector Current: 27A; (4)ICM Pulsed Collector Current, IC at TC = 100℃: 220A; (5)Clamped Inductive Load Current, ILM: 220A; (6)Diode Continuous Forward Current, IF at TC = 100℃: 25A; (7)Diode Maximum Forward Current, IFM: 220A; (8)Gate-to-Emitter Voltage, VGE: ±20V; (9)Maximum Power Dissipation, PD at TC = 25℃: 200A; (10)Maximum Power Dissipation, PD at TC = 100℃: 78; (11)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to +150℃; (12)Soldering Temperature, for 10 sec: 300 (0.063 in. (1.6mm) from case); (13)Mounting Torque, 6-32 or M3 Screw: 10 lbf.in (1.1 N.m).

Features

Features: (1)UltraFast: Optimized for high operating frequencies 8-40 kHz in hard switching, >200 kHz in resonant mode; (2)Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3; (3)IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations; (4)Industry standard TO-247AC package.
