Product Summary

The SI4425BDY-T1-E3 is a P-Channel 30-V (D-S) MOSFET.

Parametrics

Absolute maximum ratings: (1)Drain-Source Voltage: -30 V; (2)Gate-Source Voltage: ±20 V; (3)Continuous Drain Current (TJ = 150℃): -11.4 A at TA = 25℃, -9.1 A at TA = 70℃; (4)Pulsed Drain Current: -50 A; (5)continuous Source Current (Diode Conduction): -2.1 A; (6)Maximum Power Dissipation: 2.5 W at TA = 25℃, 1.6 at TA = 70℃; (7)Operating Junction and Storage Temperature Range: -55 to 150 ℃.

Features

Features: (1)TrenchFET Power MOSFET; (2)Advanced High Cell Density Process.

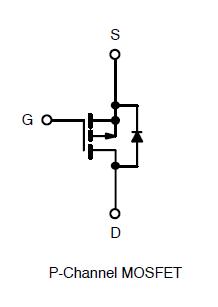

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SI4425BDY-T1-E3
SI4425BDY-T1-E3
Vishay/Siliconix
MOSFET 30V 11A 2.5W
Data Sheet
0-1: $1.33
1-25: $1.02
25-50: $0.97
50-100: $0.92
