Product Summary
The ISD17180EY is a high quality, fully integrated, single-chip multimessage voice record and playback device ideally suited to a variety of electronic systems. The message duration is user selectable in ranges from 26 seconds to 120 seconds, depending on the specific device. The sampling frequency of each device can also be adjusted from 4 kHz to 12 kHz with an external resistor, giving the user greater flexibility in duration versus recording quality for each application. Operating voltage spans a range from 2.4 V to 5.5 V to ensure that the ISD17180EY is optimized for a wide range of battery or line-powered applications.
Parametrics
Absolute maximum ratings: (1)Junction temperature: 1500℃; (2)Storage temperature range: -650℃ to +1500℃; (3)Voltage Applied to any pads: (VSS - 0.3V) to (VCC + 0.3V); (4)Power supply voltage to ground potential: -0.3V to +7.0V.
Features
Features: (1)Integrated message management systems for single-chip, push-button applications; (2)Selectable sampling frequency controlled by an external oscillator resistor; (3)Selectable message duration; (4)Message and operation indicators; (5)Dual operating modes; (6)Two individual input channels; (7)Dual output channels; (8)ChipCorder standard features; (9)Temperature options: Commercial: 0℃ to +50℃ (die); 0℃ to +70℃ (packaged units), Industrial: -40℃ to +85℃ (packaged units); (10)Packaging types: available in die, PDIP, SOIC and TSOP; (11)Package option: Lead-free packaged units.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

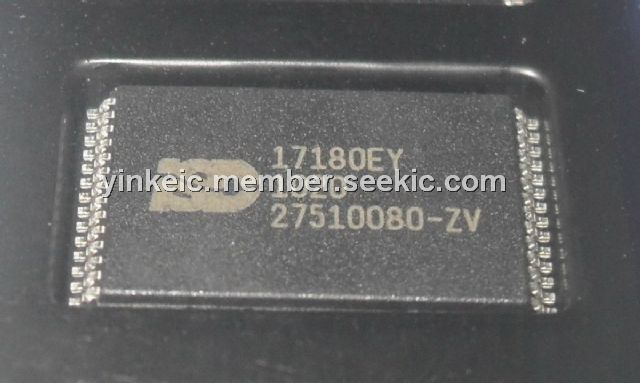

ISD17180EY |
IC VOICE REC/PLAY 180SEC 28-TSOP |
Data Sheet |
|
|
||||||||||||||||||||||
ISD17180EY01 |
IC VOICE REC/PLAY 180SEC 28-TSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
ISD17180EYI |
IC VOICE REC/PLAY 180SEC 28-TSOP |
Data Sheet |
|
|
||||||||||||||||||||||
ISD17180EYI01 |
IC VOICE REC/PLAY 180SEC 28-TSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
ISD17180EYIR |
IC VOICE REC/PLAY 180SEC 28-TSOP |
Data Sheet |
|
|
||||||||||||||||||||||
ISD17180EYR |
IC VOICE REC/PLAY 180SEC 28-TSOP |
Data Sheet |
|
|
