Product Summary

The MAX6971AUG serial-interfaced LED driver provides 16 open-drain, constant-current-sinking LED driver outputs rated at 36V. The MAX6971AUG operates from a 3V to 5.5V supply. Applicatons of the MAX6971AUG include: Variable Message Signs, Marquee Displays, Point-of-Order Signs, Traffic Signs, Gaming Features and Architectural Lighting.

Parametrics

MAX6971AUG absolute maximum ratings: (1) Voltage with respect to GND, V+: -0.3V to +6V, OUT: -0.3V to 40V; (2) DIN, CLK, LE, OE, SET: -0.3V to (V+ +0.3V) ; (3) DOUT Current: ±10mA; (4) OUT_ Sink Current: 60mA; (5) Total GND Current: 960mA; (6) Continuous Power Dissipation (TA=+70°C) : 975mW; (7) Operating Temperature Range: -40 to +125°C; (8) Junction Temperature: +150°C; (9) Storage Temperature Range: -65 to +150°C; (10) Lead Temperature (soldering, 10s) : +300°C.

Features

MAX6971AUG features: (1) 25Mb, Industry-Standard, 4-Wire Serial Interface; (2) 3V to 5.5V Logic Supply; (3) 16 Constant-Current LED Outputs Rated at 36V; (4) Up to 55mA Continuous Current per Output; (5) Output Current Programmed by Single Resistor; (6) 3% Current Matching Between Outputs; (7) 6% Current Matching Between ICs; (8) High-Dissipation, 24-Pin Packages; (9) -40 to +125°C output 16 clock cycles later to allow cascading of multi- -40°,C to +125°,C Temperature Range.

Diagrams

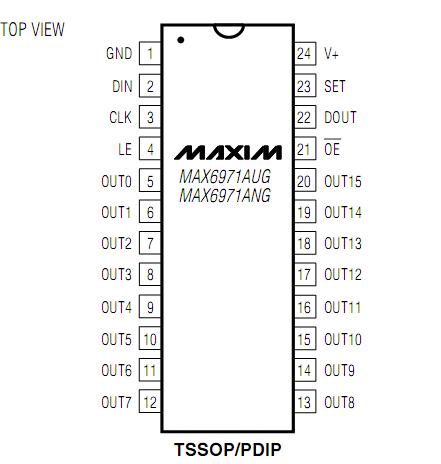

MAX6971AUG Pin Configuration
