Product Summary

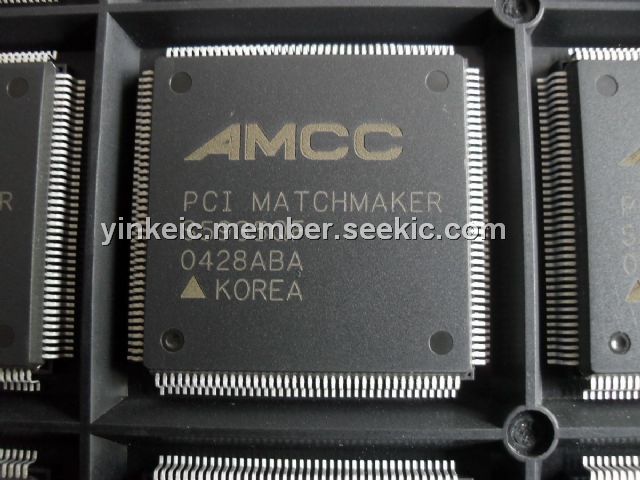

The S5935QF is an off-the-shelf, low-cost, standard product, which is PCI 2.1 compliant. And, since AMCC is a member of the PCI Special Interest Group, the S5935QF has been tested on various manufacturer s PCI motherboards, chip sets, PCI BIOSs and operating systems. The device allows special direct data accessing between the PCI bus and the user application through implementation of four definable Pass-Thru data channels. Each data channel is implemented by defining a Host memory segment size and 8/16/32-bit user bus
width.
Parametrics
Absolute maximum ratings and dc characteristics: (1)Storage Temperature: –55 to 125 ℃; (2)Supply Voltage (V CC): –0.3 to 7.0 Volts; (3)Input Pin Voltage: –0.5 to V CC + 5.0 Volts; (4)Power Dissipation: 1.05 Watts @33 MHz max; (5)Supply Voltage: 4.75 to 5.25 V; (6)Input High Voltage: 2.0 V min; (7)Input Low Voltage: -0.5 to 0.8 v; (8)Input High Leakage Current: 70 uA max at Vin=2.7; (9)Input Low Leakage Current: –70 uA at Vin=0.5.
Features
Features: (1)PCI 2.1 Compliant Master/Slave Device; (2)Full 132 Mbytes/sec Transfer Rate; (3)Supports new Intel 440BX/GX Chipsets; (4)Supports new WinNT Service Pack 2 & 3; (5)PCI Bus Operation DC to 33 MHz; (6)8/16/32 Bit Add-On User Bus; (7)Four Definable Pass-Thru Data Channels; (8)Two 32 Byte Internal FIFOs w/DMA; (9)Synchronous Add-On Bus Operation; (10)Mail Box Registers w/Byte Level Status; (11)Direct Mail Box Data Strobe/Interrupts; (12)Direct PCI & Add-On Interrupt Pins; (13)Optional Non-Volatile Memory Boot Loading; (14)Optional Expansion BIOS/POST Code.
