Product Summary
The SKM400GB123D is an IGBT Module. The application of the SKM400GB123D is Switching (not for linear use).
Parametrics
SKM400GB123D absolute maximum ratings: (1) VCES (Tj=25℃): 1200V; (2)IC (Tj=150℃, Tc=25(80)℃): 400(330)A; (3)ICM (Tc=25(80)℃; tp=1 ms): 800/660 A; (4) VGES: ±20V; (5) Ptot (per IGBT; Tc=25℃): 2500W; (6)Tvj: -40℃ to +150℃; (7) Tstg: -40℃ to +125℃.
Features
SKM400GB123D features: (1)MOS input (voltage controlled); (2)N channel, Homogeneous Si; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)Isolated copper baseplate using DCB Direct Copper Bonding Technology; (6)Large clearance (12 mm) and creepage distances (20 mm)
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |

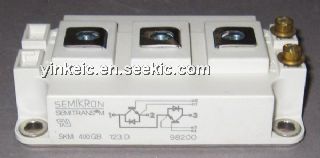

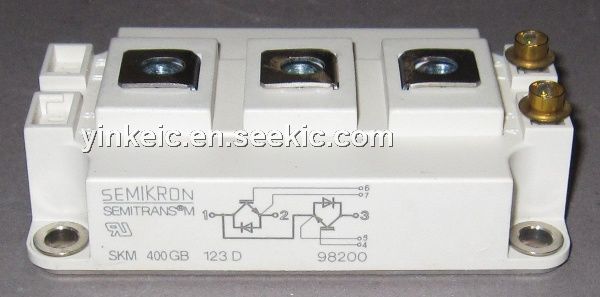

![]() SKM400GB123D |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
