Product Summary

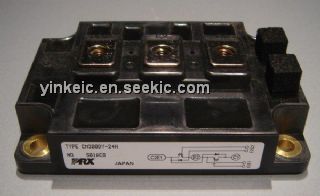

The CM300DY-24H is a Mitsubishi IGBT Module. It is designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM300DY-24H are AC motor control, Motion/Servo Control, UPS and Welding Power Supplies.
Parametrics
CM300DY-24H absolute maximum ratings: (1)Collector-emitter voltage VCES: 1200V; (2)Gate-emitter voltage VGES: ±20V; (3)Collector Current IC(TC = 25℃): 300A; (4)Emitter Current IE: 300A; (5)Maximum collector dissipation PC: 2100W; (6)Junction temperature Tj: -40℃ to +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8)Isolation voltage Viso: 2500V; (9)Weight: 500g.
Features
CM300DY-24H features: CM100DU-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

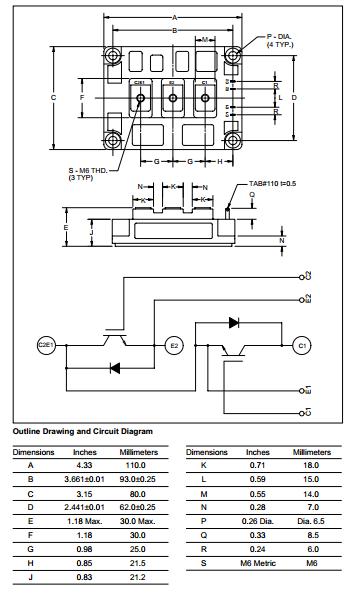

Diagrams
