Product Summary

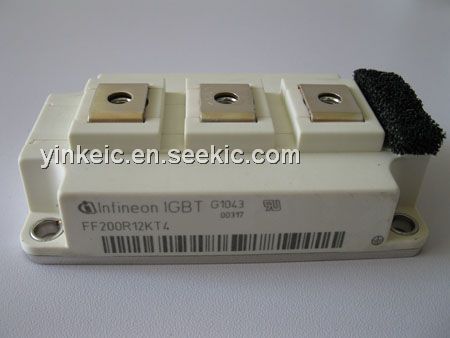

The FF200R12KT4 is a 62mm C-series module with fast trench/fieldstop IGBT4 and optimized EmCon diode.

Parametrics

FF200R12KT4 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1200V ; (2)DC-collector current: Tc=80℃, Tvj=150℃, Ic nom=200A; Tc=25℃, Tvj=150℃, Ic nom=320A; (3)Repetitive Reak Current(tp=1ms): 400A; (4)Total Power Dissipation(Tc=25℃, Tvj=150℃): 1100W ; (5)Gate-emitter Peak Voltage: +/-20V.

Features

FF200R12KT4 features: (1)Collector-emitter saturation voltage(IC=200A, VGE=15V, Tvj=25℃): 1.75-2.15V; (2)Gate threshold voltage(IC=8.00mA, VCE=VGE, Tvj=25℃): 5.2-6.4V; (3)Gate charge(VGE=-15V...+15V): 1.80μC; (4)Internal gate resistor(Tvj=25℃): 3.8; (5)Input capacitance(f=1MHz, Tvj=25°C, VCE=25V, VGE=0V): 14.0nF; (6)Collector-emitter cut-off current(VCE=1200 V, VGE=0V, Tvj=25°C): 5.0 mA.

Diagrams

FF200R12KT4 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF200R12KT4
FF200R12KT4
Infineon Technologies
IGBT Modules N-CH 1.2KV 320A
Data Sheet
0-6: $79.84
6-10: $72.58
