Product Summary

The 6MBI50J-060 is a Fuiji IGBT (MBT) Module.

Parametrics

6MBI50J-060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 600V; (2)Gate-Emitter Voltage VGES: ±20V; (3)collector current IC: 50A; (4) Max. Power Dissipation Pc: 150W ; (5) Operating ambient temperature Tj: +150℃; (6)Storage temperature TSTG: -40℃ to +125℃; (8)Isolation Voltage(AC.1min) Visol: 2500V.

Features

6MBI50J-060 features: (1)Zero gate voltage collector current ICES: 1.0A max. (Tj=25℃, VGE=0V, VCE=600V); (2)Gate-emitter leakage current IGES: 15μA max. (VGE=0V, VCE=±20V); (3)Gate-emitter threshold voltage VGE(th): 5.0V(VGE=20V, IC=50mA); (4)Gate-emitter saturation voltage VGE(sat): 1.7V(VGE=15V, IC=50A).

Diagrams

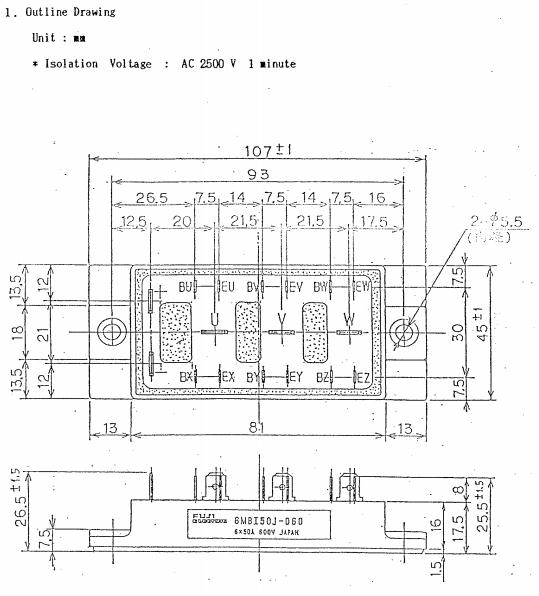

6MBI50J-060 dimension figure
