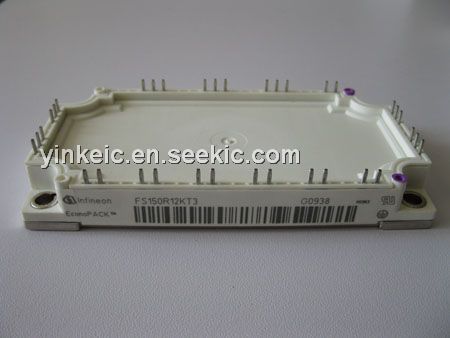

Product Summary

FS150R12KT3 is an IGBT Wechselrichter / IGBT Inverter.

Parametrics

FS150R12KT3 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1200V ; (2)DC-collector current: Tc=80℃, Ic nom=150A; Tc=25℃, Ic nom= 200A; (3)Repetitive Reak Current (tp=1ms, Tc=80℃): 300A; (4)Total Power Dissipation(Tc=25℃): 700W ; (5)Gate-emitter Peak Voltage: +/-20V.

Features

FS150R12KT3 features: (1)Collector-emitter saturation voltage (IC=150A, VGE=15V, Tvj=25℃): 1.70-2.15V; (2)Gate threshold voltage(IC=6.00mA, VCE=VGE, Tvj=25℃): 5.0-6.5V; (3)Gate charge (VGE=-15V...+15V): 1.40μC; (4)Internal gate resistor (Tvj=25℃): 5.0Ω; (5)Input capacitance (f=1MHz, Tvj=25°C, VCE=25V, VGE=0V): 10.5nF; (6)Collector-emitter cut-off current (VCE=1200 V, VGE=0V, Tvj=25°C): 5.0 mA.

Diagrams

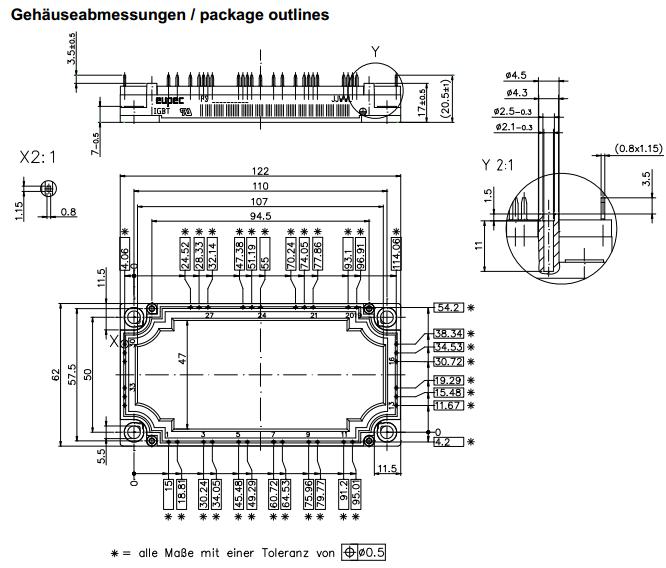

FS150R12KT3 dimension figure
