Product Summary
The FZ600R12KE3 is a 62mm C-series module with fast trench/fieldstop IGBT3 and EmCon High Efficiency diode. The applications of the FZ600R12KE3 are High Power Conberters, moto driver and UPS systems and Wind Turbines.
Parametrics
FZ600R12KE3 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1200V ; (2) Continuous DC-collector current: Tc=80℃, Tvj=150℃, Ic nom=600A; Tc=25℃, Tvj=150℃, Ic nom=900A; (3)Repetitive Reak collector Current(tp=1ms): 1200A; (4)Total Power Dissipation(Tc=25℃, Tvj=150℃): 2800W ; (5)Gate-emitter Peak Voltage: +/-20V.
Features
FZ600R12KE3 features: (1)Low Switching Losses; (2) Unbeatable Robustness; (3) VCEsat with positive Temperature Coefficient; (4) Low VCEsat; (5)Package with CTI>400; (6) High Creepage and Clearance Distances; (7)Isolated Base Plate; (8) Standard Housing.

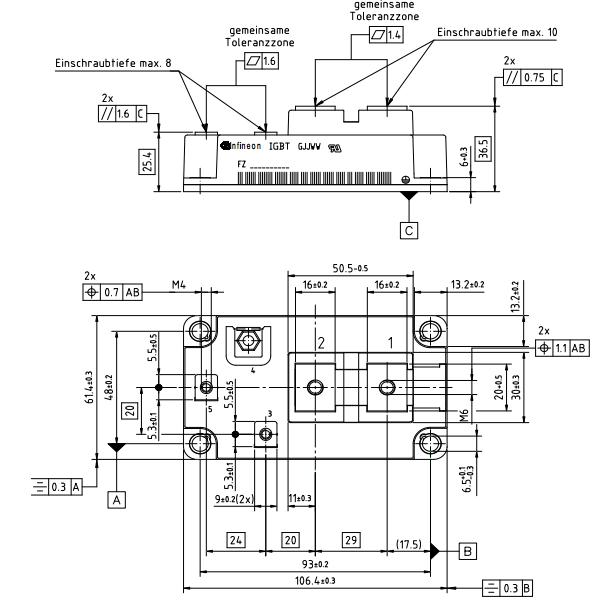

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

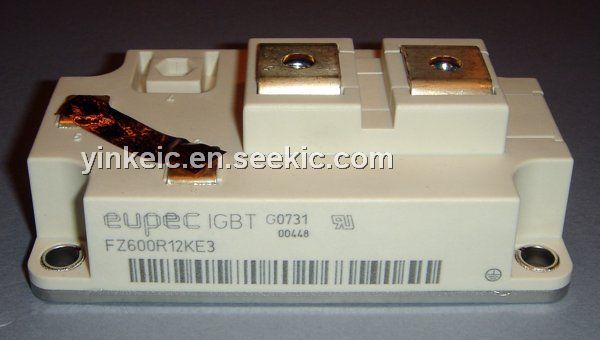

 FZ600R12KE3 |
Infineon Technologies |
IGBT Modules 1200V 600A SINGLE |
Data Sheet |
|
|
||||||||||
|
FZ600R12KE3B1 |
Infineon Technologies |
IGBT Modules N-CH 1.2KV 900A |
Data Sheet |
|
|
||||||||||
|
FZ600R12KE3S |
Infineon Technologies |
IGBT Transistors 1200V 600A SINGLE |
Data Sheet |
|
|
||||||||||
