Product Summary

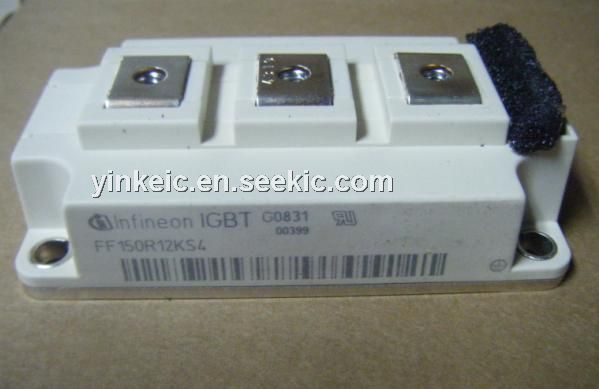

The FF150R12KS4 is a 62mm C-series module with the fast IGBT2 for high-frequency switching. The applications of the FF150R12KS4 are medical applications, moto driver, resonant inverter appliccations, servo drives and UPS systems.
Parametrics
FF150R12KS4 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1200V ; (2)DC-collector current: Tc=80℃, Tvj=150℃, Ic nom=150A; Tc=25℃, Tvj=150℃, Ic nom=225A; (3)Repetitive Reak Current(tp=1ms): 300A; (4)Total Power Dissipation(Tc=25℃, Tvj=150℃): 1250W ; (5)Gate-emitter Peak Voltage: +/-20V.
Features
FF150R12KS4 features: (1)High Short Circuit Capability, Self Limiting Short Circuit Current; (2)Low Switching Losses; (3)Unbeatable Robustness; (4)Vcesat with positive Temperature Coefficient; (5)Package with CTI>400; (6)High Creepage and Clearance Distances; (7)Isolated Base Plate;(7)Copper Base Plate; (8)Standard Housing.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FF150R12KS4 |
Infineon Technologies |
IGBT Modules 1200V 150A DUAL |
Data Sheet |
|
|
||||||||
|
FF150R12KS4_B2 |
Infineon Technologies |
IGBT Modules N-CH 1.2KV 225A |
Data Sheet |
|
|
||||||||
