Product Summary
The BZW06-31B provides high overvoltage protection by clamping action. Their instantaneous response to transient overvoltages makes them particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.
Parametrics
Absolute maximum ratings: (1)Peak pulse power dissipation: 600 W at Tj initial = Tamb; (2)Power dissipation on infinite heatsink: 1.7 W at Tamb = 75℃; (3)Non repetitive surge peak forward current for unidirectional types: 100 A at tp = 10ms Tj initial = Tamb; (4)Storage temperature range: -65 to + 175 ℃; (5)Maximum junction temperature: 175 ℃; (6)Maximum lead temperature for soldering during 10s a 5mm; (7)from case: 230 ℃.
Features
Features: (1)peak pulse power: 600 W (10/1000ms); (2)stand-off VOLtage range: From 5.8V to 376 V; (3)UNI and bidirectional types; (4)low clamping factor; (5)fast response time; (6)UL recognized.

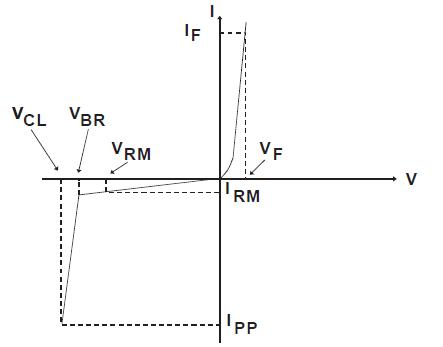

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BZW06-31B |
Taiwan Semiconductor |
TVS Diodes - Transient Voltage Suppressors 31V 600W 5% Bidir |
Data Sheet |
|
|
|||||||||
BZW06-31BRL |
STMicroelectronics |
TVS Diodes - Transient Voltage Suppressors 600W 31V Bidirect |
Data Sheet |
Negotiable |
|
