Product Summary

AT45DB041D-SU-2.5 is a 2.5V or 2.7V, serial-interface Flash memory ideallysuited for a wide variety of digital voice-, mage-, program code- and data-storage applications. The supports RapidS serial interface for applications requiring very high speed operations. RapidS serial interface is SPI compatible for frequenciesup to 66MHz. In addition to the main memory, the AT45DB041D-SU-2.5 also contains two SRAM buffersof 256/264 bytes each.

Parametrics

AT45DB041D-SU-2.5 absolute maximum ratings: (1) Temperature under Bias: -55 to +125°C; (2) Storage Temperature: -65 to +150°C; (3) All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4) All Output Voltages with Respect to Ground: -0.6V to Vcc +0.6V.

Features

AT45DB041D-SU-2.5 features: (1) Single 2.5V or 2.7V to 3.6V Supply; (2) RapidS Serial Interface: 66 MHz Maximum Clock Frequency; (3) User Configurable Page Size; (4) Page Program Operation; (5) Flexible Erase Options; (6) Two SRAM Data Buffers (256/264 Bytes) ; (7) Continuous Read Capability through Entire Array; (8) Low-power Dissipation; (9) Hardware and Software Data Protection Features; (10) Sector Lockdown for Secure Code and Data Storage; (11) JEDEC Standard Manufacturer and Device ID Read; (12) 100,000 Program/Erase Cycles Per Page Minimum; (13) Data Retention-20 Year; (14) Industrial Temperature Range; (15) Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

Diagrams

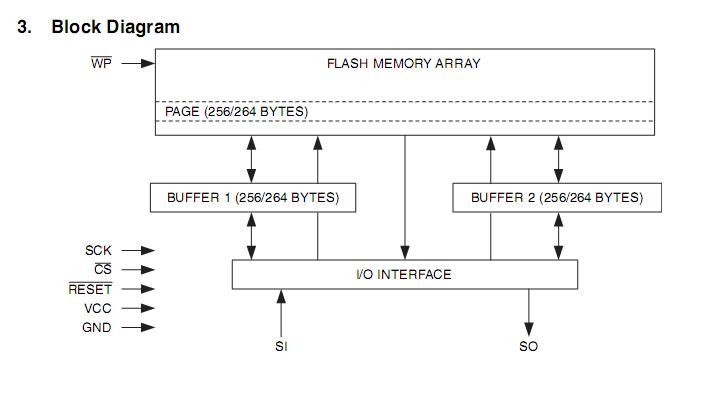

AT45DB041D-SU-2.5 Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT45DB041D-SU-2.5
AT45DB041D-SU-2.5

Atmel

Flash 4MB SERIAL 2.5V - IND TEMP

Data Sheet

0-1: $0.60
1-10: $0.58
10-25: $0.54
25-100: $0.51
