Product Summary

The IRFP260NPBF is from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

Absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V: 50 A; (2)Continuous Drain Current, VGS @ 10V: 35 A; (3)Pulsed Drain Current: 200 A; (4)Power Dissipation: 300 W; (5)Linear Derating Factor: 2.0 W/℃; (6)Gate-to-Source Voltage: ±20 V; (7)Single Pulse Avalanche Energy: 560 mJ; (8)Avalanche Current: 50 A; (9)Repetitive Avalanche Energy: 30 mJ; (10)Peak Diode Recovery dv/dt: 10 V/ns; (11)Operating Junction and Storage Temperature Range: -55 to +175 ℃; (12)Soldering Temperature, for 10 seconds: 300 (1.6mm from case ) ℃; (13)Mounting torque, 6-32 or M3 srew: 10 lbf·in (1.1N·m).

Features

Features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Fully Avalanche Rated; (6)Ease of Paralleling; (7)Simple Drive Requirements; (8)Lead-Free.

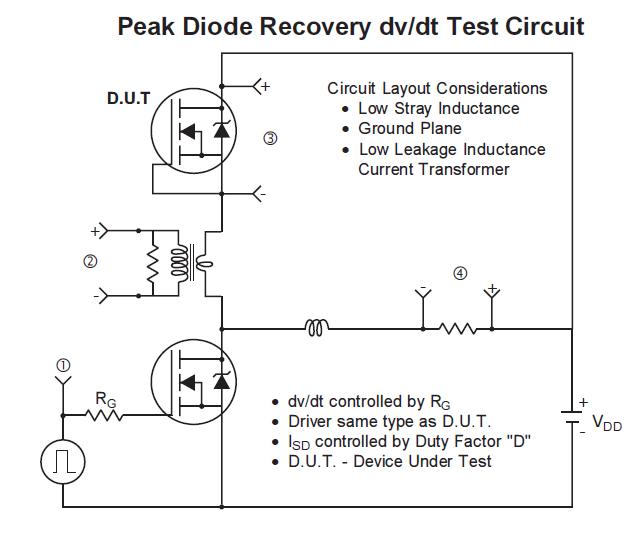

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

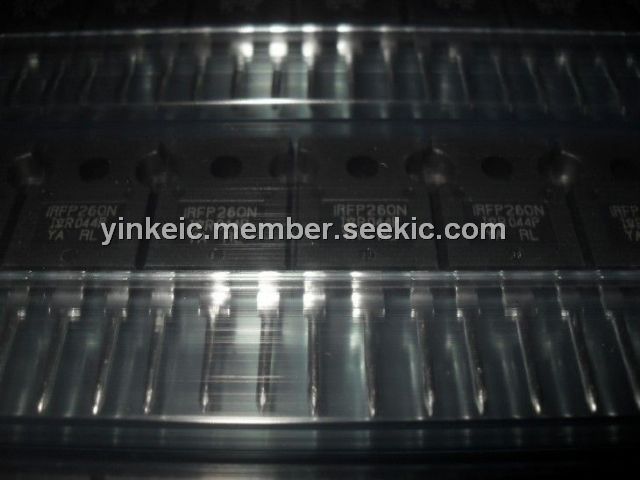

IRFP260NPBF
IRFP260NPBF

International Rectifier

MOSFET MOSFT 200V 49A 40mOhm 156nCAC

Data Sheet

0-1: $2.37
1-25: $1.62
25-100: $1.21
100-250: $1.15
