Product Summary

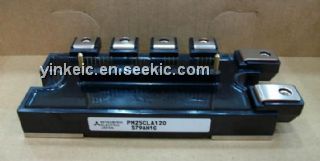

The PM25CLA120 is a MITSUBISHI INTELLIGENT POWER MODULE. The applications of the PM25CLA120 are General purpose inverter, servo drives and other motor controlers.
Parametrics
PM25CLA120 absolute maximum ratings: (1)Collector-Emitter Voltage VCES (VD=15V, VCIN=15V): 1200V; (2)Collector Current ±IC (TC=25℃): 25A; (3)Collector Current (Peak) ±ICP (TC=25℃): 50A; (4)Collector Dissipation PC (TC=25℃): 116W; (5)Junction Temperature Tj: -20℃ to +150℃.
Features
PM25CLA120 features: (1)Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved by 1μm fine rule process. For example, typical Vce(sat)=1.9V @Tj=125℃; (2)I adopt the over-temperature conservation by Tj detection of CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM; (3)3φ 25A, 1200V Current-sense IGBT type inverter; (4)Monolithic gate drive & protection logic; (5)Detection, protection & status indication circuits for, shortcircuit, over-temperature & under-voltage (P-Fo available from upper arm devices); (6)Acoustic noise-less 3.7kW class inverter application.

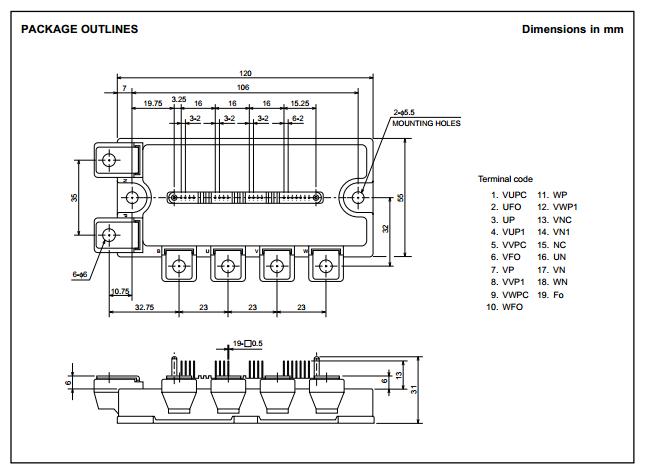

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM25CLA120 |
|
MOD IPM L-SER 6PAC 1200V 25A |
Data Sheet |
|
|
||||||||||||||||
