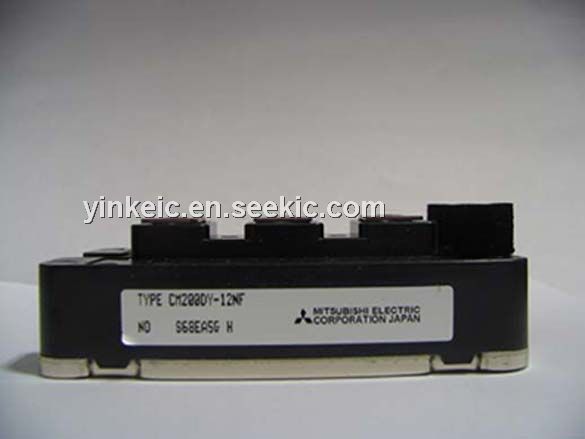

Product Summary

The CM200DY-12NF is a Mitsubishi IGBT Module. The applications of the CM200DY-12NF are General purpose inverters & Servo controls, etc.

Parametrics

CM200DY-12NF absolute maximum ratings: (1)Collector-emitter voltage VCES: 600V; (2)Gate-emitter voltage VGES: ±20V; (3)Collector Current IC(TC = 93℃): 200A; (4)Emitter Current IE: 200A; (5)Maximum collector dissipation PC: 650W; (6)Junction temperature Tj: -40℃ to +150℃; (7)Storage temperature TSTG: -40℃ to +125℃; (8)Isolation voltage Viso: 2500V; (9)Weight: 310g.

Features

CM200DY-12NF features:(1)IC: 200A; (2)VCES: 600V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

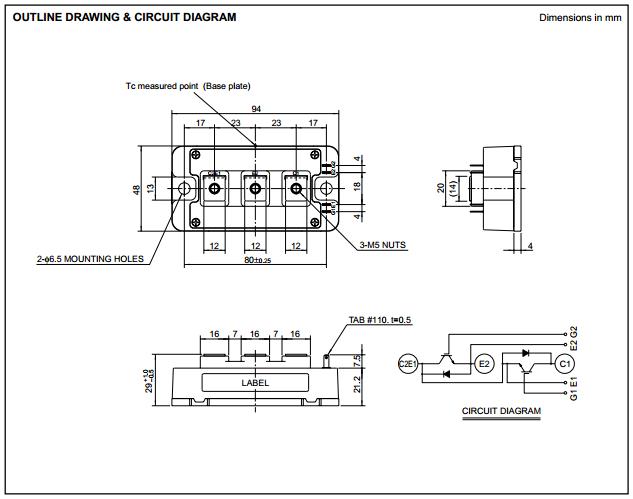

CM200DY-12NF dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

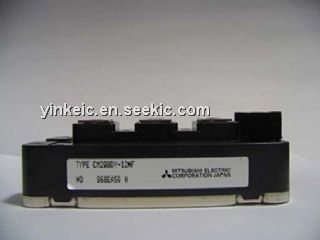

CM200DY-12NF
CM200DY-12NF

IGBT MOD DUAL 600V 200A NF SER
Data Sheet
0-1: $69.76
1-10: $65.39
10-100: $58.85
100-250: $56.67
250-500: $55.80
500-1000: $53.19
1000-2500: $52.32
