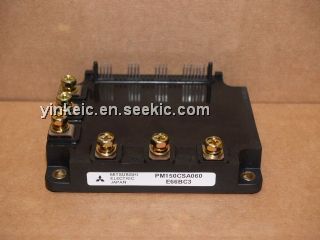

The pm150csa060 is a Mitsubushi intelligent power module. The pm150csa060 is an isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits of the pm150csa060 provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. Applications of the pm150csa060 include: Inverters, UPS, Motion/Servo Control and Power Supplies
Parametrics
pm150csa060 absolute maximum ratings: (1) Power Device Junction Temperature Tj: -20 to 150°C; (2) Storage Temperature Tstg: -40 to 125°C; (3) Case Operating Temperature TC: -20 to 100°C; (4) Supply Voltage Protected by OC and SC (V=13.5 - 16.5V, Inverter Part) VCC (port) : 400V; (5) Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) : 2500Vrms.
Features
pm150csa060 features: (1) Complete Output Power Circuit; (2) Gate Drive Circuit; (3) Protection Logic: Short Circuit, Over Current, Over Temperature and Under Voltage.

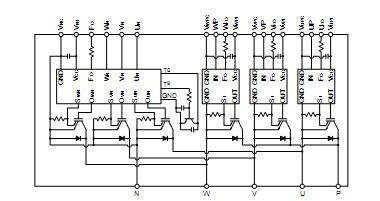

Diagrams
