Product Summary

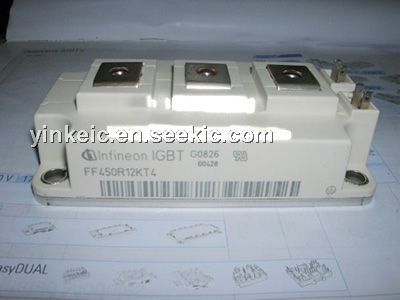

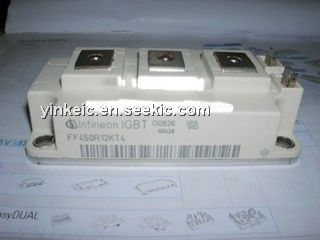

The FF450R12KT4 is a 62mm C-Series module with fast Trench/Fieldstop IGBT4 and Emitter Controlled HE diode. The applications of the FF450R12KT4 are High Power Converters, moto driver, servo drives and UPS systems, Wind Turbines.

Parametrics

FF450R12KT4 absolute maximum ratings: (1)Collector-emitter Voltage(Tvj=25℃): 1200V ; (2)DC-collector current: Tc=100℃, Tvj=175℃, Ic nom=450A; Tc=25℃, Tvj=175℃, Ic nom=580A; (3)Repetitive Reak Current(tp=1ms): 900A; (4)Total Power Dissipation(Tc=25℃, Tvj=175℃): 2400W ; (5)Gate-emitter Peak Voltage: +/-20V.

Features

FF450R12KT4 features: (1)Extended Operation Temperature Tvj op; (2)Low Switching Losses; (3)Low VCEsat; (4)Unbeatable Robustness; (5)VCEsat with positive Temperature Coefficient; (6)4 kV AC 1min Insulation; (7)Package with CTI > 400; (8)High Creepage and Clearance Distances; (9)High Power Density; (10)Isolated Base plate; (11)Standard Housing.

Diagrams

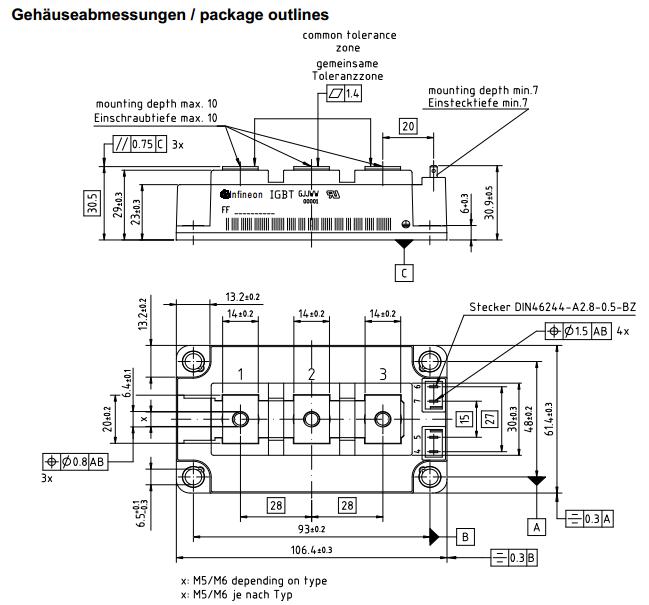

FF450R12KT4 dimension figure
