Product Summary

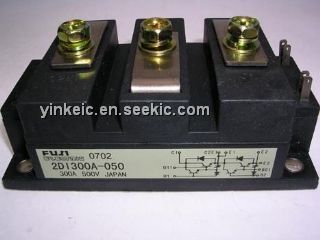

The 2DI300A-050 is a Power Transistor Module. The applications of the 2DI300A-050 are High Power Switching, Uninterruptible Power Supply, AC Motor Controls, Welding Machines.
Parametrics
2DI300A-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 10V; (5)IC: 300A; (6)ICP(1ms): 600A; (7)PC: 1200W(one Tansistor), 2400W(two Tansistors); (8)Junction Temperature(Tj): +150℃; (9)Storage Temperature (Tstg): -40℃ to +125℃; (10)Weight: 550g; (11)Visol(AC. 1min): 2500V.
Features
2DI300A-050 features: (1)High Current; (2) High DC Current Grain; (3)Insulated Type.

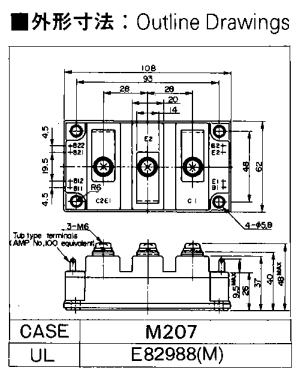

Diagrams
