Product Summary
The GP1A53HRJ00F is a standard, OPIC output, transmissive photointerrupter with opposing emitter and detector in a case, providing non-contact sensing. For this family of devices, the emitter and detector are inserted in a case, resulting in a through-hole design.
Parametrics
Absolute maximum ratings: (1)Input: Forward current: 50 mA, Peak forward current: 1 A, Reverse voltage: 6 V, Power dissipation: 75 mW; (2)Output: Supply voltage: -0.5 to +17 V, Output current: 50 mA, Power dissipation: 250 mW; (3)Operating temperature: -25 to +85 ℃; (4)Storage temperature: -40 to +100 ℃; (5).3Soldering temperature: 260 ℃.
Features
Features: (1)Transmissive with OPIC output; (2)Highlights: Vertical Slit for alternate motion detection, Output Low Level at intercepting optical path; (3)Key Parameters: Gap Width : 5mm, Slit Width (detector side): 0.5mm, Package: 13.7×10×5.2mm; (4)Lead free and RoHS directive compliant.

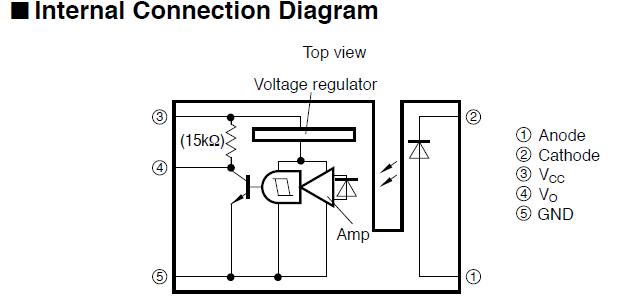

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GP1A53HRJ00F |
Sharp Microelectronics |
Optical Switches, Transmissive, with Photo IC Output Case Type Photntrptr 3.0mm 0.5mm Screw |
Data Sheet |
|
|
|||||||||
