Product Summary

The RSP-1500-48 is a 1000W Single Output Power Supply.

Parametrics

Absolute maximum ratings: (1)DC voltage: 48 V; (2)rated current: 21 A; (3)current range: 0 to 21 A; (4)rated power: 1008 W; (5)voltage range: 127 to 370 VDC; (6)frequency range: 47 to 63 Hz.

Features

Features: (1)Universal AC input / Full range; (2)AC input active surge current limiting; (3)Built-in 5V/0.5A auxiliary power; (4)Built-in active PFC function, PF>0.95; (5)Protections: Short circuit / Overload / Over voltage / Over temperature; (6)Output voltage can be trimmed between 40 ~ 110% of the rated output voltage; (7)Forced air cooling by built-in DC fan; (8)Active current sharing up to 4000W(3+1); (9)DC OK Signal; (10)Built-in remote ON-OFF control; (11)Built-in remote sense function; (12)High power density 10.7w/inch; (13)1U low profile 41mm.

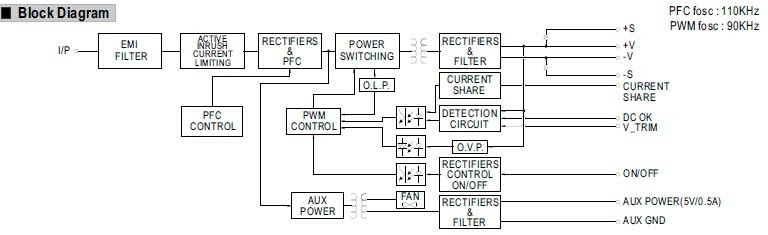

Diagrams

RSP-1500-48 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RSP-1500-48
RSP-1500-48

Mean Well

Linear and Switching Power Supplies 48V 32A 1536W Active PFC Function

Data Sheet

0-1: $306.62
1-10: $287.26
10-20: $263.05
