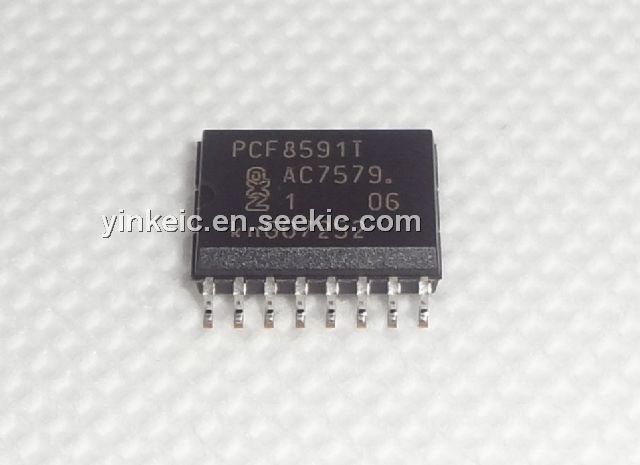

Product Summary

PCF8591T is a single-chip, single-supply low power 8-bit CMOS data acquisition device with four analog inputs, one analog output and a serial IC-bus interface. The functions of the PCF8591T include analog input multiplexing, on-chip track and hold function, 8-bit analog-to-digital conversion and an 8-bit digital-to-analog conversion. Applications of the PCF8591T include: Closed loop control systems, Low power converter for remote data acquisition, Battery operated equipment and Acquisition of analog values in automotive, audio and TV applications.

Parametrics

PCF8591T absolute maximum ratings: (1) supply voltage (pin 16) VDD: -0.5 to +8.0V; (2) input voltage (any input) VI: -0.5V to VDD +0.5V; (3) DC input current Ii: ±10mA; (4) DC output current IO: ±20mA; (5) VDD or Vss current: ±50mA; (6) total power dissipation per package: 300mW; (7) power dissipation per output: 100mW; (8) operating ambient temperature: -40 to +85°C; (9) storage temperature: -65 to +150°C.

Features

PCF8591T features: (1) Single power supply; (2) Operating supply voltage 2.5V to 6V; (3) Low standby current; (4) Serial input/output via IC-bus; (5) Address by 3 hardware address pins; (6) Sampling rate given by I C-bus speed; (7) 4 analog inputs programmable as single-ended or differential inputs; (8) Auto-incremented channel selection; (9) Analog voltage range from VSS to VDD; (10) On-chip track and hold circuit; (11) 8-bit successive approximation A/D conversion; (12) Multiplying DAC with one analog output.

Diagrams

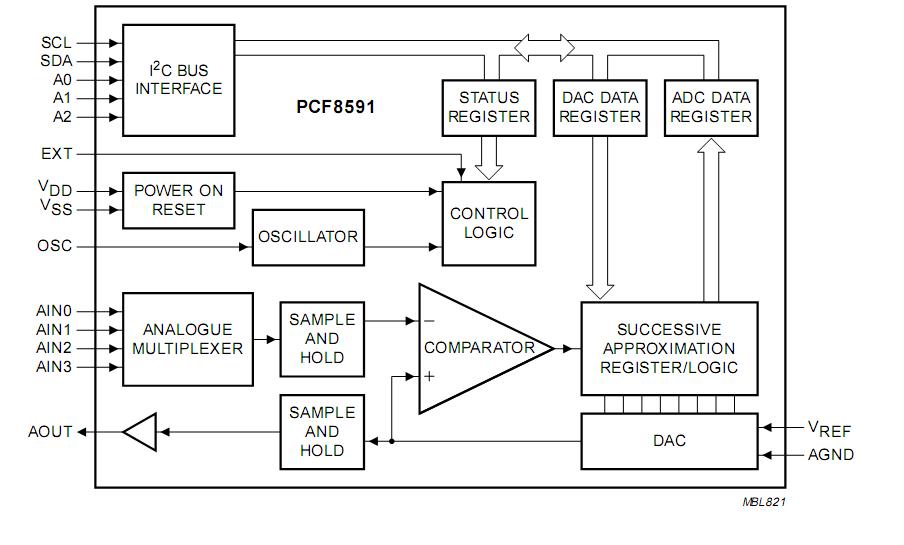

PCF8591T Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PCF8591T/2,512
PCF8591T/2,512
NXP Semiconductors
ADC (A/D Converters) ADC/DAC 8-BIT I2C
Data Sheet
0-1: $1.42
1-25: $1.28
25-100: $1.21
100-250: $1.15
PCF8591T/2,518
PCF8591T/2,518
NXP Semiconductors
Audio A/D Converter ICs 8 BIT ADC/DAC I2C
Data Sheet
0-1: $1.42
1-25: $1.28
25-100: $1.21
100-250: $1.15
