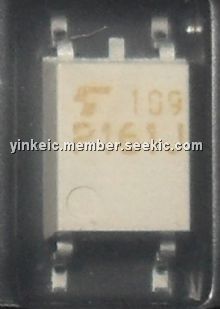

Product Summary

The TOSHIBA TLP161J is a triac drive programmable controller. The TOSHIBA mini flat coupler TLP161J is a small outline coupler, suitable for surface mount assembly. The TLP161J consists of a photo triac, optically coupled to a gallium arsenide infrared emitting diode.

Parametrics

TLP161J maximum ratings: (1)Forward current IF: 50 mA; (2)Forward current derating (Ta ≥ 53℃) ΔIF / ℃: -0.7 mA / ℃; (3)Peak forward current (100μs pulse, 100pps) IFP: 1 A; (4)Reverse voltage VR: 5 V; (5)Junction temperature Tj: 125 ℃; (6)Onstate current derating (Ta ≥ 25℃) ΔIT / ℃: -0.67 mA / ℃; (7)Peak onstate current (100μs pulse, 120pps) ITP: 2 A; (8)Peak nonrepetitive surge current(PW = 10ms, DC = 10%) ITSM|: 1.2 A; (9)Storage temperature range Tstg: -55~125 ℃; (10)Operating temperature range Topr: -40~100 ℃; (11)Lead soldering temperature (10 s) Tsol: 260 ℃; (12)Isolation voltage (AC, 1min., R.H ≤ 60%) BVS: 2500 Vrms.

Features

TLP161J features: (1)Zero voltage crossing Turn-on; (2)Peak off-state voltage: 600V (min.); (3)Trigger LED current: 10mA (max.); (4)On-state current: 70mA (max.); (5)Isolation voltage: 2500Vrms (min); (6)UL recognized: UL1577, file no. E67349

Diagrams

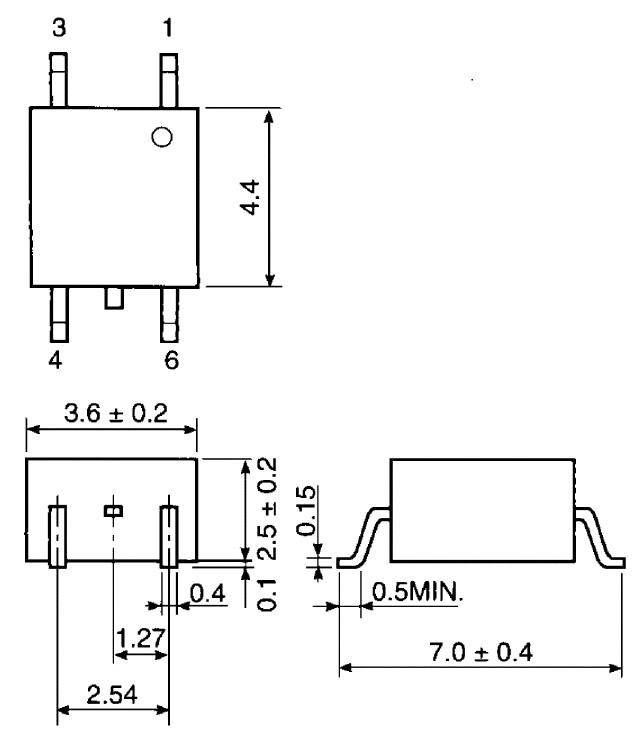

TLP161J outline

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLP161J
TLP161J

PHOTOCOUPLER TRIAC-OUT 6MFSOP-4
Data Sheet
Negotiable
TLP161J(TPR)
TLP161J(TPR)

PHOTOCOUPLER TRIAC-OUT 6MFSOP-4
Data Sheet
Negotiable
TLP161J(TPR,U,C,F)
TLP161J(TPR,U,C,F)
Toshiba
Triac & SCR Output Optocouplers 600Vdrm 2500Vrms Zero-volt turn-on
Data Sheet
0-1: $0.52
1-10: $0.43
10-100: $0.35
100-250: $0.27
TLP161J(U,C,F)
TLP161J(U,C,F)
Toshiba
Triac & SCR Output Optocouplers 600Vdrm 2500Vrms Non-0volt turn-on
Data Sheet
0-1: $0.45
1-10: $0.36
10-100: $0.31
100-250: $0.27
TLP161J(V4-U,C,F)
TLP161J(V4-U,C,F)
Toshiba
Triac & SCR Output Optocouplers Triac cplr IFT=10mA VDRM=600V ZC
Data Sheet
0-1: $0.38
1-10: $0.30
10-100: $0.26
100-250: $0.23
