Product Summary
The MC10131L is a dual master-slave type D flip-flop. The MC10131L may be clocked separately by holding the common clock in the low state and using the enable inputs for the clocking function. The output states of the MC10131L change on the positive transition of the clock.
Parametrics
MC10131L electrical characteristics: (1) Power Supply Drain Current, IE: 45 to 62mAdc; (2) Input Current IinH: 245 to 525μAdc; (3) Output Voltage Logic 1, VOH: -1.890 V to -0.7V; (4) Threshold VoltageLogic 1 VOHA: -0.910 to -1.080Vdc; (5) Threshold VoltageLogic 0, VOLA: -1.595 to -1.630Vdc; (6) Toggle Frequency (Max) : 125 to 160MHz.

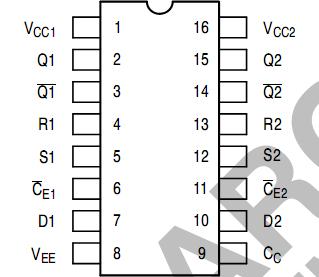

Diagrams
