Product Summary

KSZ8863RLL is a highly integrated 3-port switch on a chip IC in smallest footprint, enabling a new generation of low port
The configurations of the KSZ8863RLL provided by the KSZ8863 family enable count, cost-sensitive and power efficient 10/100Mbps switch systems. The KSZ8863RLL is designed to support the GREEN requirement in switch systems of today. Applications of the KSZ8863RLL include: IP Set-Top Box, IP Television/IP Television POF, IP phone/Video phone, Analog Telephone Adapter (ATA) , Automotive Infotainment, Industrial control and Media converter.

Features

KSZ8863RLL features: (1) Single 2.5V or 3.3V supply with internal 1.8V LDO, and optional 3.3V, 2.5V or 1.8V VDDIO; (2) Port 1 & Port 2 by-pass mode; (3) 4-queue (per port) traffic prioritization, based on port, 802.1p, 802.1Q VLAN tags, or Differential Services (both Ipv4 and Ipv6 priority classification) ; (4) Source address filtering ; (5) Tail tag mode at Port 3; (6) Internal generated RMII 50MHz clock (KSZ8863RLL) .

Diagrams

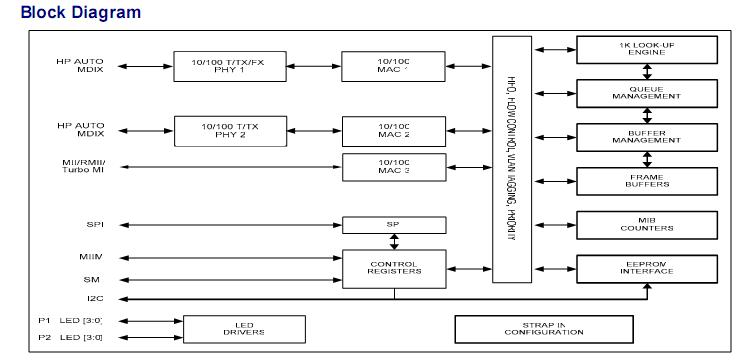

KSZ8863RLL Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

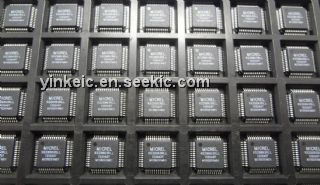

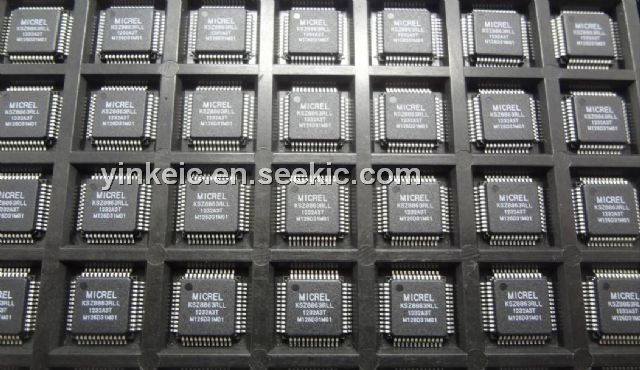

KSZ8863RLL
KSZ8863RLL

IC ETHERNET SW 3PORT 48-LQFP
Data Sheet
0-1: $3.25
1-25: $2.60
25-100: $2.02
100-250: $1.92
250-500: $1.88
KSZ8863RLL-EVAL
KSZ8863RLL-EVAL

BOARD EVALUATION FOR KSZ8863RLL
Data Sheet
0-1: $279.30
KSZ8863RLLI
KSZ8863RLLI

IC ETHERNET SWITCH 3PORT 48-LQFP
Data Sheet
0-1: $4.46
1-25: $3.65
25-100: $3.30
100-250: $3.03
250-500: $2.76
500-1000: $2.41
1000-2500: $2.32
2500-5000: $2.23
