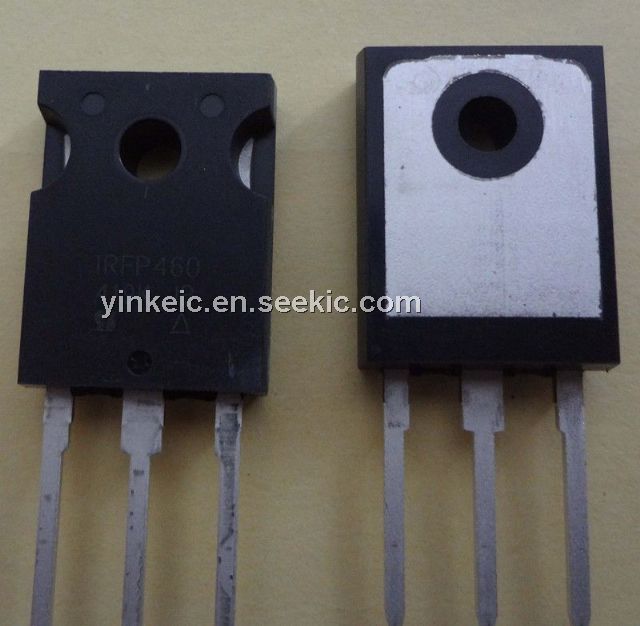

Product Summary

The IRFP460 is a SMPS mosfet. Applications of the IRFP460 include: Switch Mode Power Supply (SMPS) , Uninterruptable Power Supply and High speed power switching.

Parametrics

IRFP460 absolute maximum ratings: (1) Continuous Drain Current, VGS@10V, ID@Tc=25°C: 20A; (2) Continuous Drain Current, VGS@10V, ID@Tc=100°C: 13A; (3) Pulsed Drain Current IDM: 80A; (4) Power Dissipation PD@Tc=25°C: 280W; (5) Linear Derating Factor: 2.2W/°C; (6) Gate-to-Source Voltage VGS: ±30V; (7) Peak Diode Recovery dv/dt, dv/dt: 3.8V/ns; (8) Operating Junction and Storage Temperature Range: -55 to +150°C; (9) Soldering Temperature, for 10 seconds: 300°C (1.6mm from case ) .

Features

IRFP460 features: (1) Low Gate Charge Qg results in Simple Drive Requirement; (2) Improved Gate, Avalanche and dynamic dv/dt Ruggedness; (3) Fully Characterized Capacitance and Avalanche Voltage and Current; (4) Effective Coss specified ( See AN1001) .

Diagrams

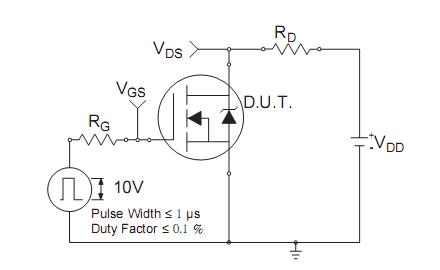

IRFP460 Circuit
