Product Summary

The FF450R12ME4 is EconoDUAL3 with trench/fieldstop IGBT4 and optimized emitter controlled diode.

Parametrics

Absolute maximum ratings: (1)collector-emitter voltage: 1200 V at Tvj=25℃; (2)DC-collector current: 450 A at TC=100℃, Tvj=175℃, 675 A at TC=25℃, Tvj=175℃; (3)repetitive peak collector current: 900 A at tp=1ms; (4)total power dissipation: 2250 W; (5)gate-emitter peak voltage: +/-20 V.

Features

Features: (1)insulation teast voltage: 2,5 kV; (2)material of module baseplate: Cu; (3)material for internal insulation: Al2O3; (4)creepage distance: 14,5 mm; (5)clearance distance: 12,5 mm; (6)comparative tracking index: >200.

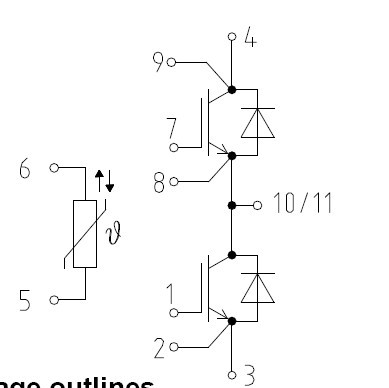

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF450R12ME4
FF450R12ME4
Infineon Technologies
IGBT Modules IGBT 1200V 450A
Data Sheet
0-6: $138.60
6-10: $124.80
