Product Summary

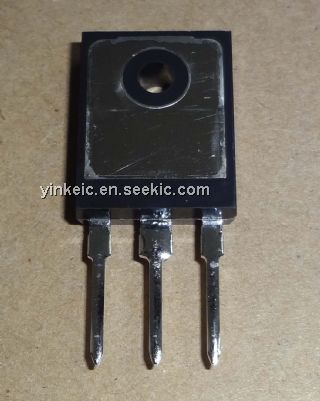

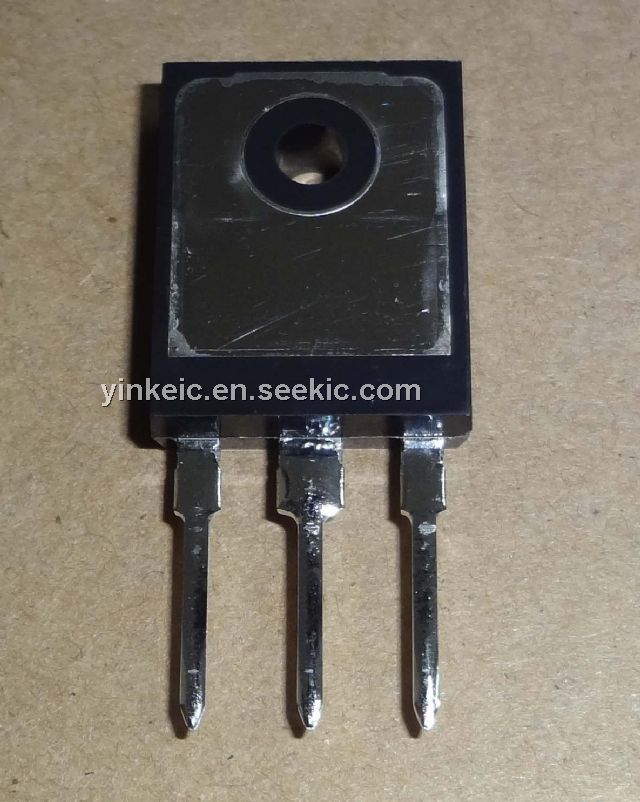

The IRFP150NPBF is a Hexfet power mosfet. This benefit, combined with the fast switching speed and ruggedized device design that the IRFP150NPBF is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRFP150NPBF absolute maximum ratings: (1) Continuous Drain Current, VGS@10V, ID@Tc=25°C: 42A; (2) Continuous Drain Current, VGS@10V, ID@Tc=100°C: 30A; (3) Pulsed Drain Current IDM: 140A; (4) Power Dissipation PD@Tc=25°C: 160W; (5) Linear Derating Factor: 1.1W/°C; (6) Gate-to-Source Voltage VGS: ±20V; (7) Single Pulse Avalanche Energy EAS: 420mJ; (8) Avalanche Current IAR: 22A; (9) Repetitive Avalanche Energy EAR: 16mJ; (10) Peak Diode Recovery dv/dt, dv/dt: 5.0V/ns; (11) Operating Junction and Storage Temperature Range: -55 to +175°C; (12) Soldering Temperature, for 10 seconds: 300°C.

Features

IRFP150NPBF features: (1) Advanced Process Technology; (2) Dynamic dv/dt Rating; (3) 175°C Operating Temperature; 94) Fast Switching; (5) Fully Avalanche Rated.

Diagrams

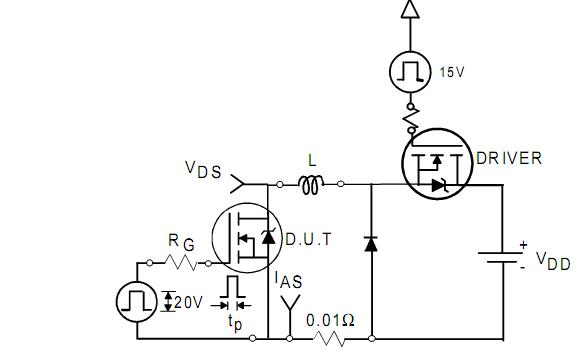

IRFP150NPBF Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFP150NPBF
IRFP150NPBF
International Rectifier
MOSFET MOSFT 100V 39A 36mOhm 73.3nCAC
Data Sheet
0-1: $1.56
1-25: $1.01
25-100: $0.73
100-250: $0.68
