Product Summary

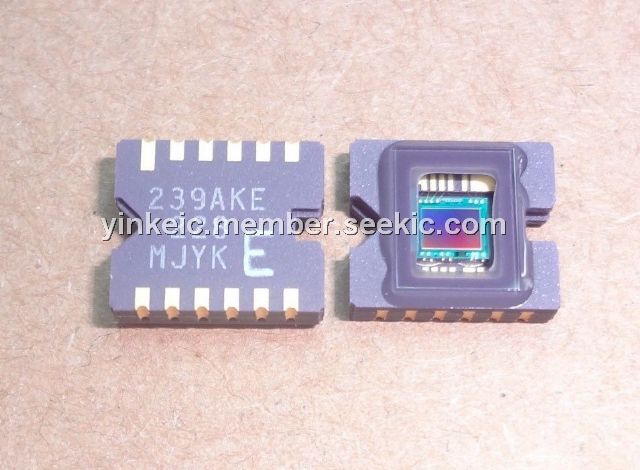

The ICX239AKE is an interline CCD solid-state image sensor suitable for PAL small color cameras. High resolution is achieved through the use of Ye, Cy, Mg, and G complementary color mosaic filters. This chip ICX239AKE features a field period readout system and an electronic shutter with variable charge-storage time. The package is a small 12-pin SON(LCC).

Parametrics

ICX239AKE absolute maximum ratings: (1)VDD, VOUT, RG – φSUB: -40 to 8V; (2)Vφ1, Vφ3 – φSUB: –50 to +15V; (3)Vφ2, Vφ4, VL – φSUB: 50 to +0.3V; (4)Hφ1, Hφ2, GND – φSUB: –40 to +0.3V; (5)VDD, VOUT, RG – GND: –0.3 to +20V; (6)Vφ1, Vφ2, Vφ3, Vφ4 – GND:–10 to +18V; (7)Hφ1, Hφ2 – GND: –10 to +6V; (8)Storage temperature: -30 to 80℃; (9)Operating temperature: -10 to 60℃.

Features

ICX239AKE features: (1)High sensitivity and low smear; (2)Horizontal register: 3.3 to 5.0V drive; (3)Reset gate: 3.3 to 5.0V drive; (4)No voltage adjustment (Reset gate and substrate bias are not adjusted.); (5)Low dark current and excellent antiblooming characteristics; (6)Continuous variable-speed shutter; (7)Recommended range of exit pupil distance; (8)Ye, Cy, Mg, and G complementary color mosaic filters on chip; (9)12-pin ceramic SON(LCC) package.

Diagrams

ICX239AKE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ICX239AKE
ICX239AKE
Other

Data Sheet
Negotiable
