Product Summary

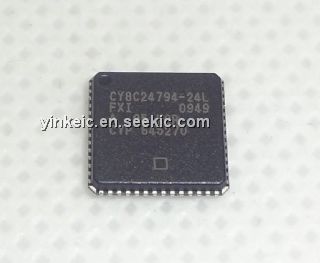

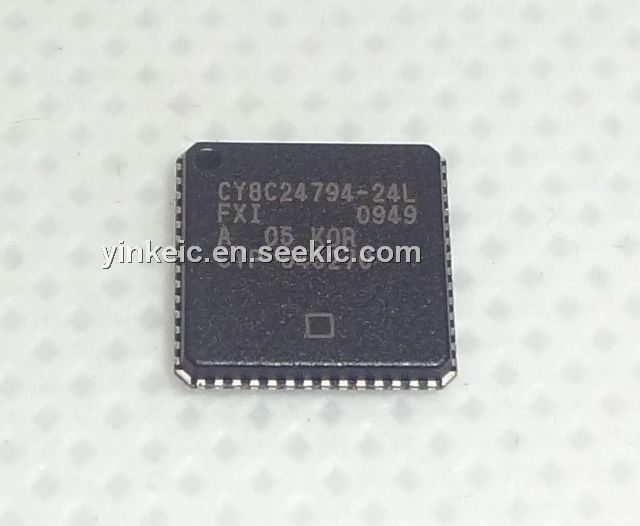

The CY8C24794-24LFXI is a PSoC mixed-signal array. The CY8C24794-24LFXI is designed to replace traditional MCUs, system ICs, and the numerous discrete components that surround it. The CY8C24794-24LFXI is unique member of the PSoC family because the includes a full-featured, full-speed (12 Mbps) USB port.
Parametrics
CY8C24794-24LFXI absolute maximum ratings: (1) Storage Temperature TSTG: -55 to +100°C; (2) Ambient Temperature with Power Applied TA: -40 to +85°C; (3) Supply Voltage on Vdd Relative to Vss Vdd: -0.5V to +6.0V; (4) DC Input Voltage VIO: Vss -0.55 to Vdd +0.5V; (5) DC Voltage Applied to Tri-state Vss -0.5 to Vdd +0.5V; (6) Maximum Current into any Port Pin IMIO: -25mA tp +50mA; (7) Maximum Current into any Port Pin Configured as Analog Driver: -50 to +50mA; (8) Electro Static Discharge Voltage ESD: 2000V ( Human Body Model ESD) ; (9) Latch-up Current: 200mA.
Features
CY8C24794-24LFXI features: (1) Powerful Harvard Architecture Processor; (2) Advanced Peripherals (PSoC Blocks) ; (3) Full-Speed USB (12 Mbps) ; (4) Flexible On-Chip Memory; (5) Programmable Pin Configurations; (6) Precision, Programmable Clocking; (7) Additional System Resources; (8) Additional System Resources.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY8C24794-24LFXI |
Cypress Semiconductor |
Programmable Systems-on-a-Chip (PSoC) IC MCU 16K FLASH 1K SRAM |
Data Sheet |
Negotiable |
|
||||
|
CY8C24794-24LFXIT |
Cypress Semiconductor |
Programmable Systems-on-a-Chip (PSoC) 16K Flash 1K RAM IND |
Data Sheet |
Negotiable |
|
||||
