Product Summary

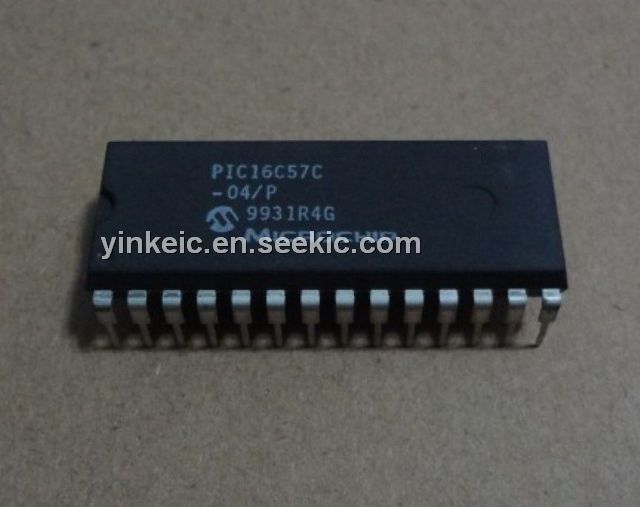

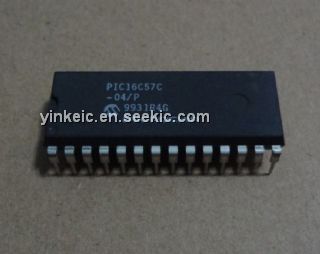

PIC16C57C-04/P is a low-cost, high performance, 8-bit, fully static EPROM/ ROM-based CMOS microcontroller. The PIC16C57C-04/P employs a RISC architecture with only 33 single word/single cycle instructions. The PIC16C57C-04/P fts perfectly in applications ranging from high-speed automotive and appliance motor ontrol to low-power remote transmitters/receivers, pointing devices and telecom processors.

Parametrics

PIC16C57C-04/P absolute maximum ratings: (1) Ambient temperature under bias: -65 to +125°C; (2) Storage temperature: -65 to +125°C; (3) Voltage on VDD with respect to VSS: 0 to 7.5V; (4) Voltage on MCLR with respect to VSS: 0 to +14V; (5) Voltage on all other pins with respect to VSS: -0.6V to (VDD +0.6V) ; (6) Total power dissipation: 800mW; (7) Max. current out of VSS pin: 150mA; (8) Max. current into VDD pin: 100mA; (9) Max. current into an input pin (T0CKI only) : ±500μA; (10) Input clamp current, IIK (VI < 0 or VI > VDD) : ±20mA ; (11) Output clamp current, IOK (VO < 0 or VO > VDD) : ±20mA ; (12) Max. output current sunk by any I/O pin: 15mA; (13) Max. output current sourced by any I/O pin: 15mA; (14) Max. output current sourced by a single I/O port A: 45mA; (15) Max. output current sourced by a single I/O port B: 45mA; (16) Max. output current sunk by a single I/O port A: 45mA; (17) Max. output current sunk by a single I/O port B: 45mA.

Features

PIC16C57C-04/P features: (1) 12-bit wide instructions; (2) 8-bit wide data path; (3) Seven or eight special function hardware registers; (4) Two-level deep hardware stack; (5) Direct, indirect and relative addressing modes for data and instructions.

Diagrams

PIC16C57C-04/P Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16C57C-04/P
PIC16C57C-04/P

Microchip Technology

8-bit Microcontrollers (MCU) 3KB 72 RAM 20 I/O

Data Sheet

0-1: $1.58
1-10: $1.26
10-25: $1.23
25-100: $1.19
