Product Summary

The BLF6G20-180PN is a power LDMOS transistor. The 180W BLF6G20-180PN LDMOS power transistor for base station applications at frequencies from 1800MHz to 2000MHz. Applications of the BLF6G20-180PN include: RF power ampli?ers for W-CDMA base stations and multicarrier applications in the 1800 MHz to 2000 MHz frequency range.

Parametrics

BLF6G20-180PN absolute maximum ratings: (1) drain-source voltage VDS: 65V; (2) gate-source voltage: -0.5 to 13V; (3) storage temperature Tstg: -65 to +150°C; (4) case temperature Tcas: 150°C; (5) junction temperature Tj: 225°C.

Features

BLF6G20-180PN features: (1) Typical 2-carrier W-CDMA performance at frequencies of 1805MHz and 1880MHz, a supply voltage of 32V and an IDq if 1600mA; (2) Average output power=50W; (3) Power gain=50W; (4) Effciency=29.5%; (5) ACPR=-35dBc; (6) Easy power control; (7) Integrated ESD protection; (8) Excellent ruggedness; (9) High efficiency; (10) Excellent thermal stability; (11) Designed for broadband operation (1800 MHz to 2000 MHz) ; (12) Internally matched for ease of use; (13) Qualified up to a supply voltage of 32V; (14) Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances.

Diagrams

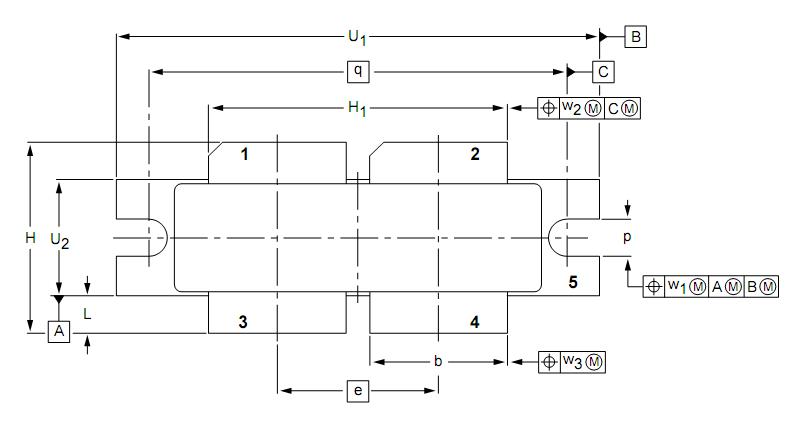

BLF6G20-180PN Dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

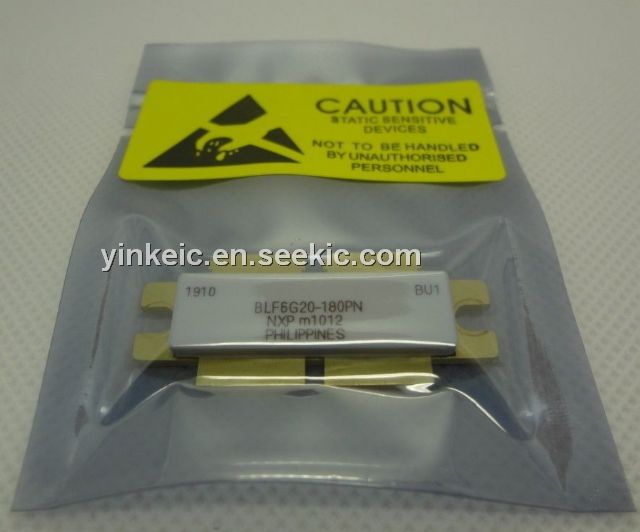

BLF6G20-180PN,112
BLF6G20-180PN,112

NXP Semiconductors

Transistors RF MOSFET Power Trans MOSFET N-CH 65V 5-Pin

Data Sheet

0-41: $57.94
41-100: $53.17
