Product Summary

The BA33DD0WHFP-TR is a 2A dropout voltage regulator with shut down switch.

Parametrics

BA33DD0WHFP-TR absolute maximum ratings: (1) supply voltage Vcc: -0.3 to +36V; (2) Power Dissipation Pd: 2300mW; (3) Operating Temperature range Topr: -40 to +125°C; (4) Storage temperature range Tstg: -55 to +150°C; (5) Maximum junction temperature Tjmax: +150°C; (6) control input voltage VCTL: -0.3V to Vcc; (7) Peak supply voltage Vcc peak: +50V.

Features

BA33DD0WHFP-TR features: (1) maximum output current: 2A, high precision output voltage: ±1%; (2) high inout voltage: 36V, built in over voltage protection.

Diagrams

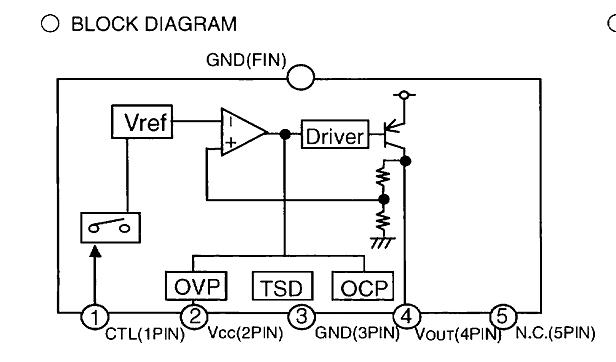

BA33DD0WHFP-TR Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

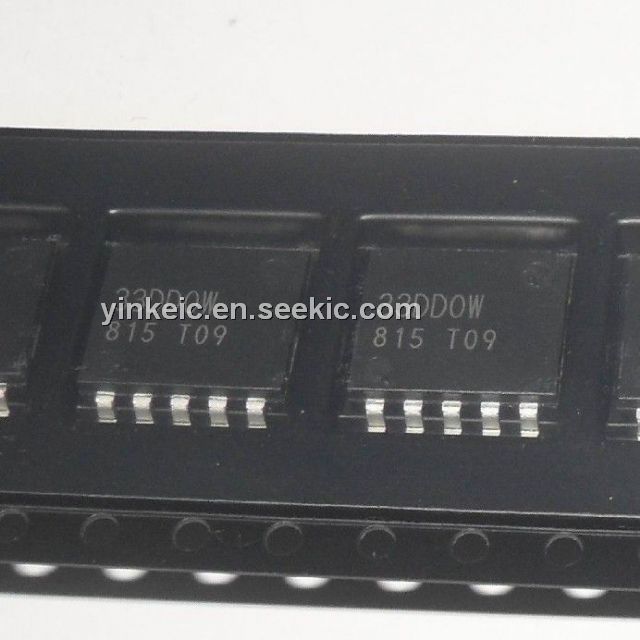

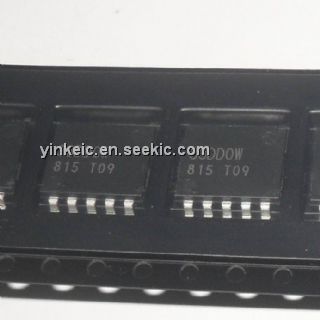

BA33DD0WHFP-TR
BA33DD0WHFP-TR

ROHM Semiconductor

Linear Regulators - Standard 5 3.3V

Data Sheet

0-2000: $0.47
