Product Summary

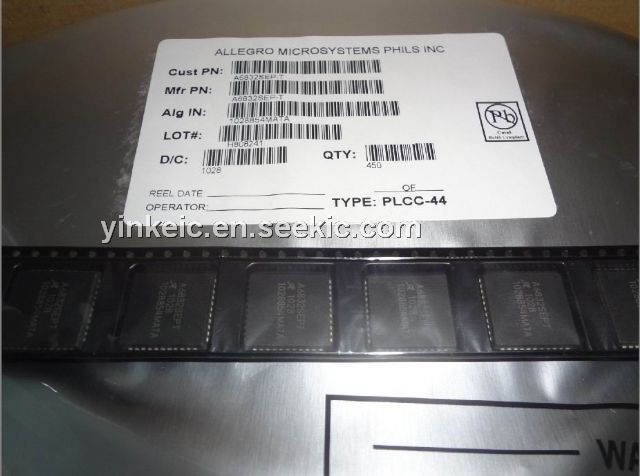

The A6832SEP-T is a DABiC-5 32-Bit serial inputlatched sink driver. The A6832SEP-T has 32 bipolar npn open-collector saturated drivers, a CMOS data latch for each of the drivers, two 16-bit CMOS shift registers, and CMOS control circuitry. The A6832SEP-T is supplied in a 44-lead plastic leaded chip carrier (package suffix EP) , for surface-mount applications requiring minimum area. Applications of the A6832SEP-T include: Thermal printheads, Multiplexed LED displays and Incandescent lamps.
Parametrics
A6832SEP-T absolute maximum ratings: (1) Output Voltage, VOUT: 40V; (2) Logic Supply Voltage, VDD: 7V; (3) Input Voltage Range, VIN: -0.3V to VDD +0.3V; (4) Continuous Output Current, IOUT: 125mA; (5) Operating Temperature RangeAmbient Temperature, TA: -20 to +85°C; (6) Storage Temperature, Ts: -55 to +150°C.
Features
A6832SEP-T features: (1) 3.3 V to 5 V logic supply range; (2) To 10 MHz data input rate; (3) Schmitt trigger inputs for improved noise immunity; (4) Low-power CMOS logic and latches; (5) 40V current sink outputs; (5) Low saturation voltage; (6) -40°C operation available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A6832SEP-T |
|
IC SINK DRIVER 32BIT LATCH 44PLC |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
A6832 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
A6832EEP-T |
|
IC SINK DRIVER 32BIT LATCH 44PLC |
Data Sheet |
|
|
||||||
|
A6832EEPTR-T |
|
IC SINK DRIVER 32BIT LATCH 44PLC |
Data Sheet |
Negotiable |
|
||||||
|
A6832SEP-T |
|
IC SINK DRIVER 32BIT LATCH 44PLC |
Data Sheet |
|
|
||||||
|
A6832SEPTR-T |
|
IC SINK DVR 32BIT LATCH 44-PLCC |
Data Sheet |
Negotiable |
|
||||||
|
A6833 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
