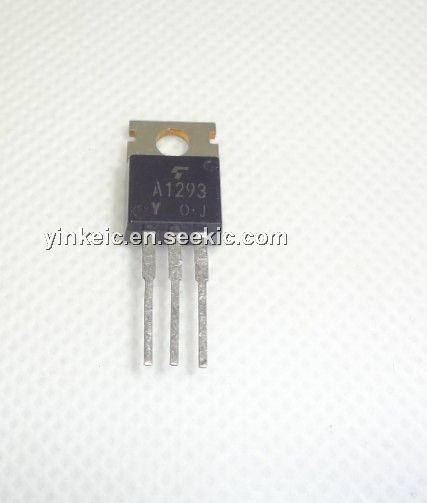

2SA1293

current switching, -0.4V, -3A, TO-220

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 9 :	1.00 / Piece
10 ~ 99 :	0.90 / Piece
100 ~ 999 :	0.80 / Piece

PartNumber:: 2SA1293

Brand:: Toshiba Semiconductor - Toshiba | Pack: | D/C:

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Nici's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-12

From Other Seller

Part Number:2SA1293
US $0.80 - 1.00
Quantity:

piece

Product Summary

2SA1293 is a high current swithing.

Parametrics

2SA1293 absolute maximum ratings: (1) collector-base voltage VCBO: -100V; (2) Collector-emitter voltage VCEO: -80V; (3) Emitter-base voltage VEBO: -7V; (4) Collector Current DC: -5A, Pulse ICP: -8A; (5) Collectory power dissipation (Tc=25°C) PC: 30W; (6) Junction temperature Tj: 150°C; (7) Storge temperature range Tstg: -55 to 150°C.

Features

2SA1293 features: (1) low collector saturation voltage: VCE (sat) =-0.4V (Max.) at IC=-3A; (2) High speed switchiong time: tstg=1.0μs (Typ.) ; (3) Complementary to 2SC3258.
