Product Summary

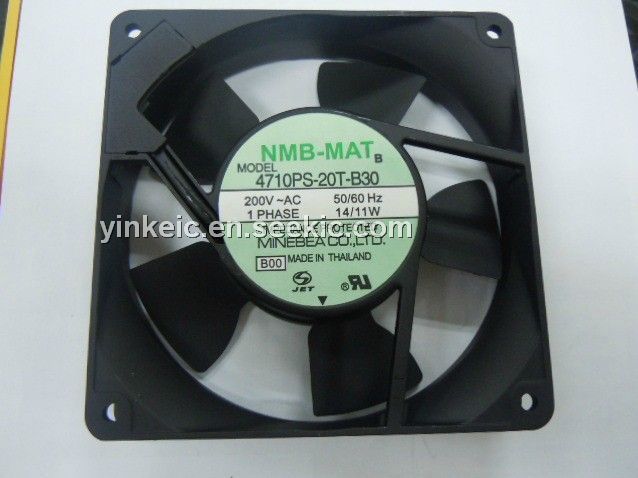

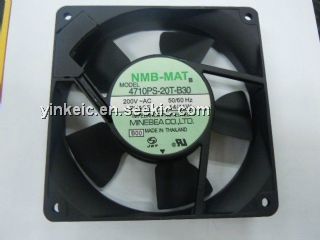

4710PS-20T-B30 is an AC Axial Fan.

Parametrics

4710PS-20T-B30 absolute maximum ratings: (1)Rated Voltage: 200V; (2)Frequency: 50Hz; (3)Current: 0.70A; (4)Input Power: 9.0W; (5)Speed: 1900 min-1; (6)Maximum Air Flow: 1.3 m3/min, 45.9 CFM; (7)Maximum Static Pressure: 19.6Pa, 0.08 INH2O; (8)Noise: 29.0dB-A.

Features

4710PS-20T-B30 features: (1)Allowable Ambient Temperature Range: -10℃ to+70℃(Operating), -40℃ to +70℃(Storage); (2)Motor Structure: Shaded Pole Induction Motor; (3)Motor Protection: Impedance Protection; (4)Failure: 10% (25℃, 50000Hours).

Diagrams

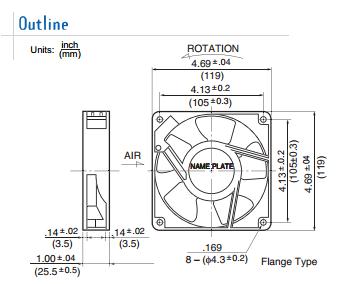

4710PS-20T-B30 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
4710PS-20T-B30-B00
4710PS-20T-B30-B00


FAN AC 119MMX25.5MM 200VAC

Data Sheet

0-40: $33.05
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
47100
47100


TAPE PACK ESD PROTECTED AREA YEL

Data Sheet

Negotiable
47100C
47100C

Murata Power Solutions

Power Inductors 10uH 3.2ADualw

Data Sheet

0-1: $0.57
1-5: $0.52
5-10: $0.49
10-25: $0.46
47100SC
47100SC

Murata Power Solutions

Power Inductors 10uH 3.8A SMT

Data Sheet

0-1: $0.65
1-5: $0.57
5-10: $0.53
10-25: $0.46
47101C
47101C

Murata Power Solutions

Power Inductors 100uH 1.01ADualw

Data Sheet

0-1: $0.57
1-5: $0.52
5-10: $0.49
10-25: $0.46
47102SC
47102SC

Murata Power Solutions

Power Inductors 1000uH 0.4A SMT

Data Sheet

0-1: $0.65
1-5: $0.57
5-10: $0.53
10-25: $0.46
47103-1001
47103-1001

Molex

Power to the Board 4 CIRCUIT BATT CON 2.0mm PITCH

Data Sheet

0-11910: $0.30
