Product Summary

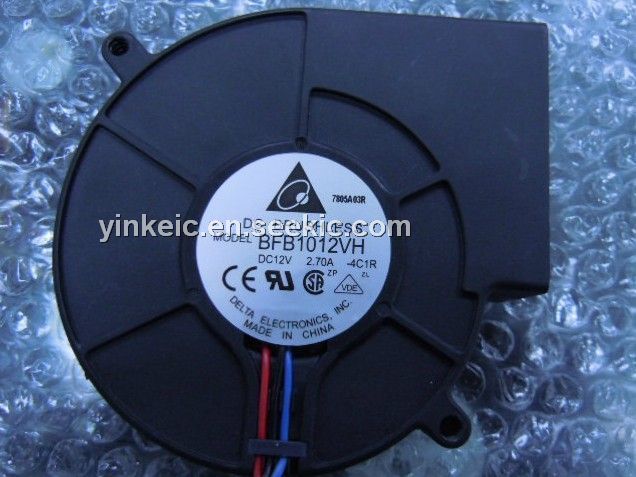

BFB1012VH is a DC FAN.

Parametrics

BFB1012VH absolute maximum ratings: (1)Rated Voltage: 12VDC; (2)Operating Voltage Range: 4.0V to 13.2V; (3)Rated Current: 1.10A; (4)Rated Input Power: 13.2W; (5)Speed: 4000 R.P.M; (6)Maximum Air Flow: 0.800 m3/min, 28.25 CFM; (7)Maximum Air Pressure: 33.0 mmH2O, 1.299 INH2O; (8)Noise: 55.0dB-A.

Features

BFB1012VH features: (1)Bearing Type: Ball Bearings; (2)Material: Impeller & Frame: Plastic(UL 94V-0); (3)Lead Wires: UL 1007 AWG #24 OR Equivalent, Red Wire Positive(+), Black Wire Negative(-); (4)Weight: 16.0g (5.64 OZ).

Diagrams

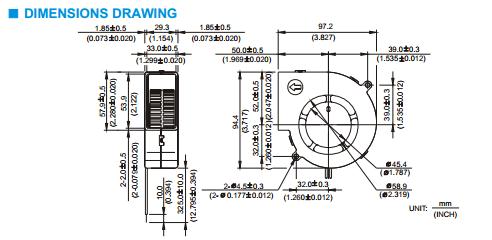

BFB1012VH dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

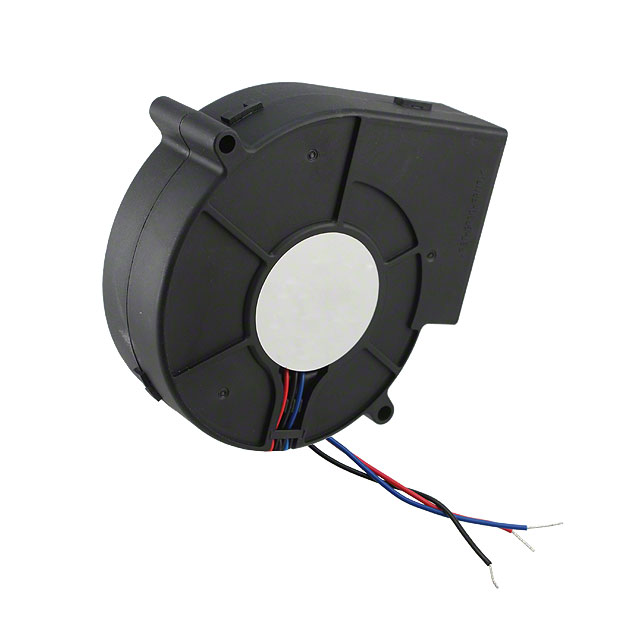

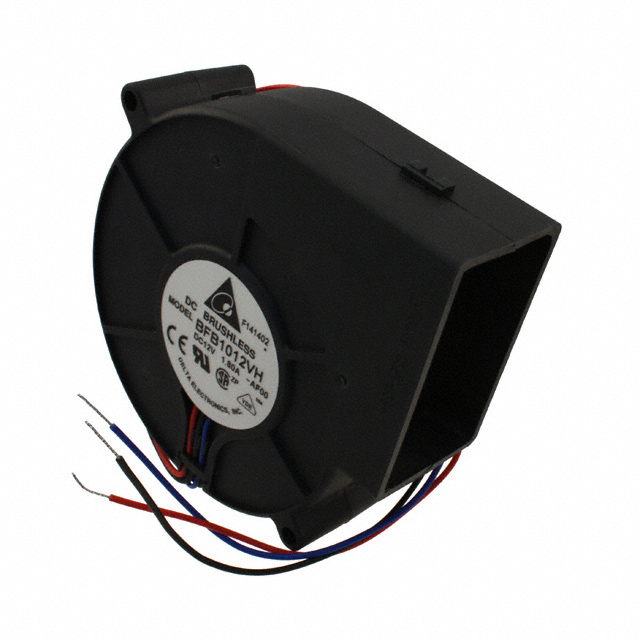

BFB1012VH-AF00
BFB1012VH-AF00


BLOWER 12VDC 97.2X94.4X33MM

Data Sheet

0-1: $17.13
1-10: $15.67
10-25: $13.12
25-50: $12.03
50-100: $10.57
100-250: $9.84
250-500: $9.11
500-1000: $8.75
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

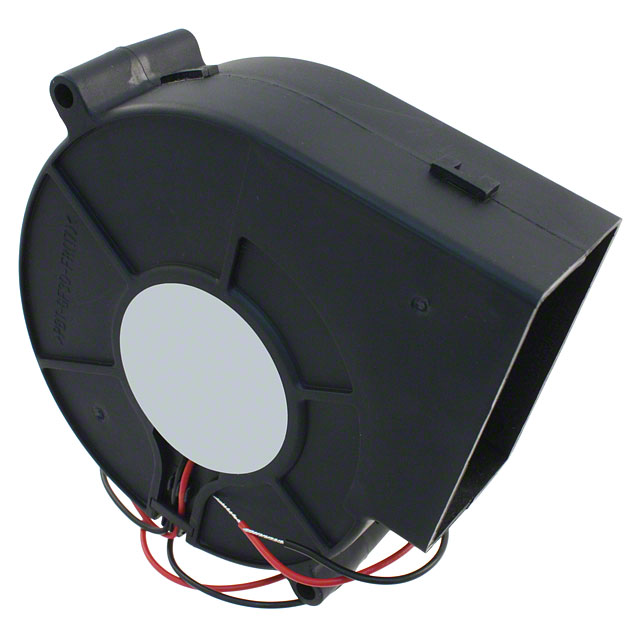

BFB1012EH-AF00
BFB1012EH-AF00


BLOWER 12VDC 97.2X94.4X33MM

Data Sheet

0-1: $17.13
1-10: $15.67
10-25: $13.12
25-50: $12.03
50-100: $10.57
100-250: $9.84
250-500: $9.11
500-1000: $8.75
BFB1012H
BFB1012H


BLOWER 12VDC 97.2X94.4X33MM

Data Sheet

0-1: $12.62
1-10: $11.55
10-25: $9.67
25-50: $8.86
50-100: $7.79
100-250: $7.25
250-500: $6.71
500-1000: $6.44
BFB1012H-F00
BFB1012H-F00


BLOWER DC 12V 97X94X33 TAC OUT

Data Sheet

0-1: $12.97
1-10: $11.87
10-25: $9.94
25-50: $9.11
50-100: $8.00
100-250: $7.45
250-500: $6.90
500-1000: $6.62
BFB1012HH
BFB1012HH


BLOWER 12VDC 97.2X94.4X33MM

Data Sheet

0-1: $12.62
1-10: $11.55
10-25: $9.67
25-50: $8.86
50-100: $7.79
100-250: $7.25
250-500: $6.71
500-1000: $6.44
BFB1012H-R00
BFB1012H-R00


BLOWER DC 12V 97X94X33 3600RPM

Data Sheet

0-56: $9.11

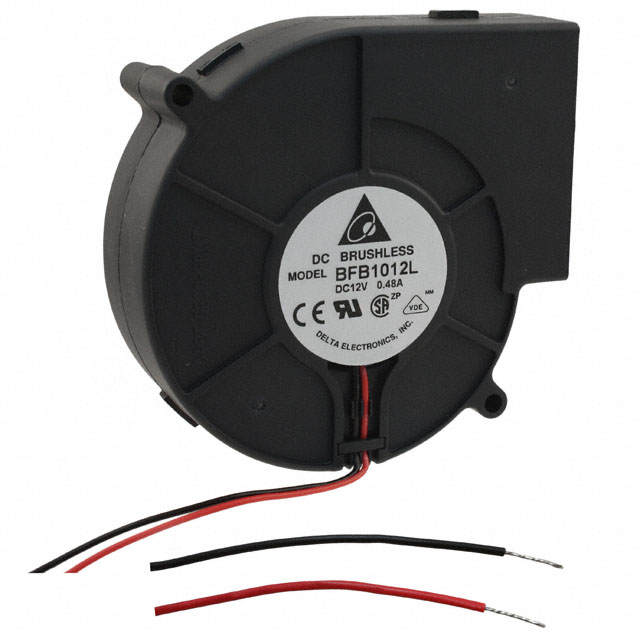

BFB1012L
BFB1012L


BLOWER 12VDC 97.2X94.4X33MM

Data Sheet

0-1: $12.62
1-10: $11.55
10-25: $9.67
25-50: $8.86
50-100: $7.79
100-250: $7.25
250-500: $6.71
500-1000: $6.44
