Product Summary

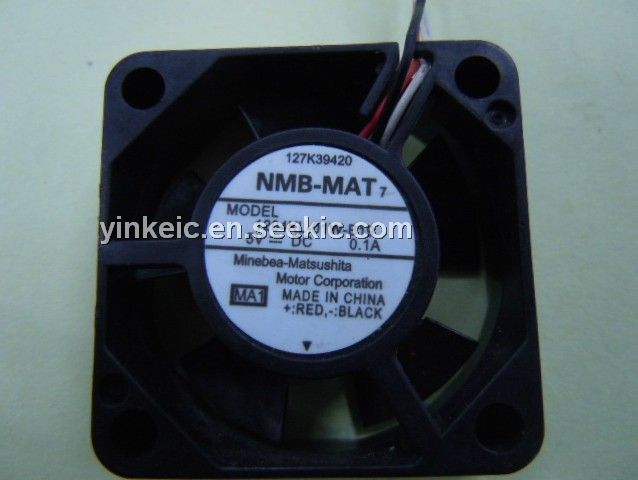

1204KL-01W-B19 is a DC FAN.

Parametrics

1204KL-01W-B19 absolute maximum ratings: (1)Rated Voltage: 5VDC; (2)Operating Voltage Range: 4.5V to 5.5V; (3)Rated Current: 0.10A; (4)Rated Input Power: 0.50W; (5)Speed: 7500 R.P.M; (6)Maximum Air Flow: 2.7 m3/min, 0.0078 CFM; (7)Maximum Air Pressure: 0.078 INH2O; (8)Noise: 8.5dB-A.

Features

1204KL-01W-B19 features: (1)Motor Protection: Auto Restart/Polarity Protection; (2)Insulation Resistance: 10MΩ or over with a DC500V megger; (3)Dielectric Withstand Voltage: AC 700V 1s; (4)Allowable Ambient Temperature Range: -10℃ to +70℃(Operating), -40℃ to +70℃(Storage).

Diagrams

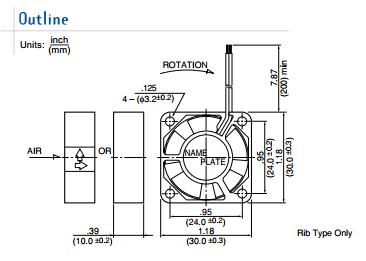

1204KL-01W-B19 dimension figure
