Product Summary

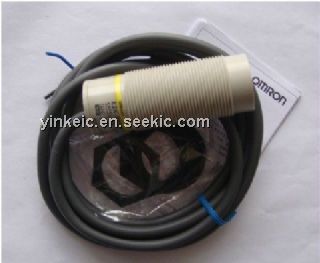

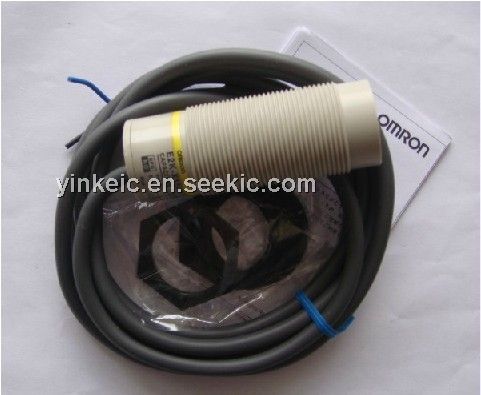

The E2K-X4ME1 is an OMRON Threaded, Cylindrical Sensor.

Parametrics

E2K-X4ME1 absolute maximum ratings: (1)Sensing distance: 8 mm ±10%; (2)Supply voltage (operating voltage range): 10 to 30 VDC; (3)Current consumption: 8 mA at 12 VDC, 15 mA at 24 VDC; (4)Standard object (mild steel): 50 x 50 x 1 mm (2.0 x 2.0 x 0.04 in); (5)Vibration: 10 to 55 Hz, 1.5 mm (0.06 in) double amplitude; (6)Control output (switching capacity): 200 mA max.; (7)Operating temperature: -25℃ to +70℃ with no icing; (8)Operating humidity: 35% to 95%; (9)Weight: Approx. 65 g.

Features

E2K-X4ME1 features: (1)Permits non-contact detection of metallic and non-metallic objects such as glass, wood, water, oil and plastic; (2)Allows indirect detection of materials inside non-metallic containers; (3)Built-in amplifier accepts a wide range of supply voltages and switches up to 200 mA; (4)LED indicator and fixed sensitivity for simple installation.

Diagrams

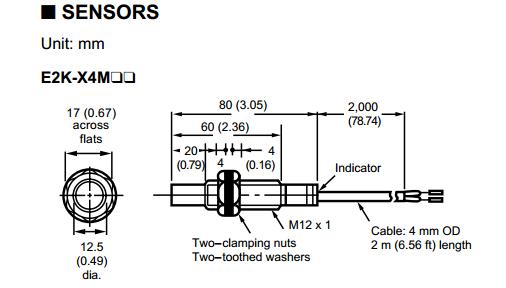

E2K-X4ME1 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
E2K-X4ME1
E2K-X4ME1
Omron Industrial
Proximity Sensors CapacitiveProxSensor 34mm 3-25mm NPN-NO
Data Sheet
0-1: $69.98
1-2: $61.73
2-5: $59.87
5-10: $56.55
E2K-X4ME1 5M
E2K-X4ME1 5M
Omron Industrial
Proximity Sensors E2K-X4ME1 W/ 5 METER CABLE
Data Sheet
0-1: $96.40
1-5: $90.05
5-10: $87.20
10-20: $85.61
