Product Summary

The E2E-X5E2 is a Short Barrel 3-Wire Prox Sensor.

Parametrics

E2E-X5E2 absolute maximum ratings: (1)Sensing distance: 5mm; (2)Size: M18; (3)Type: Shielded; (4)Supply Voltage: 12 to 24 VDC, ripple(p-p): 10% max., (10 to 40 VDC); (5)Current consumption: 13mA max.; (6)Setting distance: 0 to 4.0 mm(0 to 0.16 in); (7)Standard object(mild steel): 18 x 18 x 1 mm(0.71 x 0.71 x 0.04 in); (8)Response frequency: 0.6kHz; (9)control output: 200mA max.; (10)Ambient temperature: -40℃ to 85℃ with no icing.

Features

E2E-X5E2 features: (1)Thick nickel-plated brass barrel has wrench flats for easy installation; (2)Solid potted internal circuitry withstands shocks and water washdown to IP67; (3)High visibility indicator; (4)Miniature and standard sizes.

Diagrams

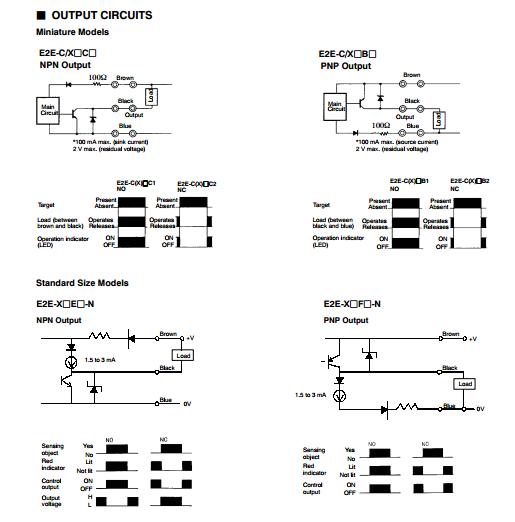

E2E-X5E2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E2E-X5E2
E2E-X5E2

Omron Industrial

Proximity Sensors Country of Origin Change Only

Data Sheet

0-1: $52.59
1-5: $49.13
5-10: $47.58
10-20: $46.71
E2E-X5E2 5M
E2E-X5E2 5M


PROXIMITY SENSOR M18 5MM NPN NC

Data Sheet

0-1: $65.27
E2E-X5E2-M1
E2E-X5E2-M1

Omron Industrial

Proximity Sensors Proximity Sensor

Data Sheet

0-1: $60.46
1-5: $59.11
5-10: $57.07
10-25: $55.03
E2E-X5E2-N 5M
E2E-X5E2-N 5M

Omron Industrial

Proximity Sensors Country of Origin Change Only

Data Sheet

0-1: $57.60
1-5: $53.81
5-10: $52.11
10-20: $51.16
