PM75CLA060

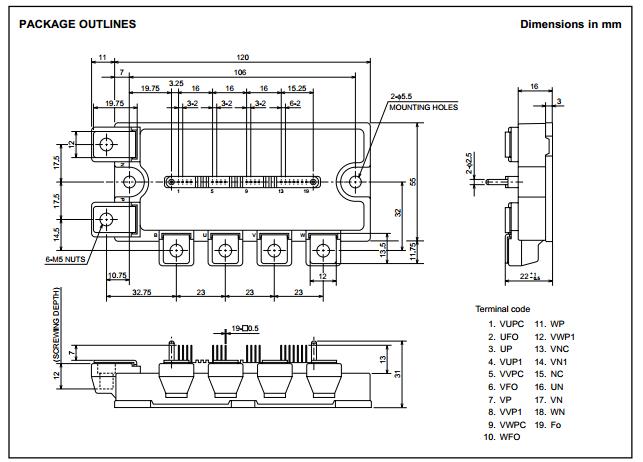

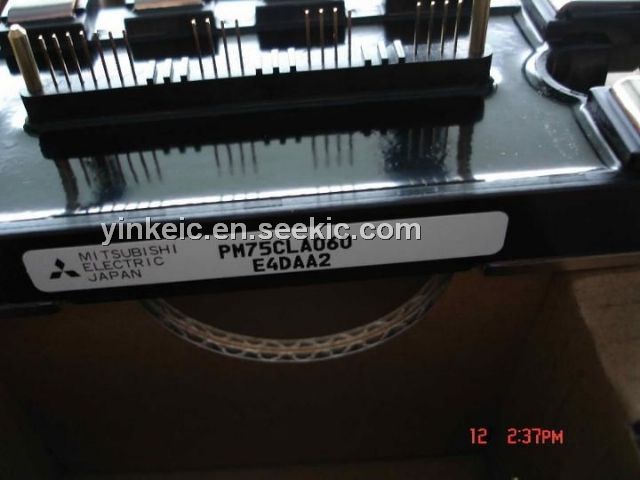

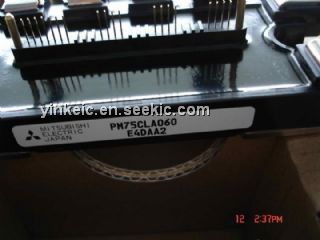

PM75CLA060, MITSUBISHI INTELLIGENT POWER MODULE, 600V, 75A, 297W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $48.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	50.00 / Piece
11 ~ 20 :	49.00 / Piece
21 ~ 30 :	48.00 / Piece

PartNumber:: PM75CLA060

Brand:: MITSUBISHI - MITSUBISHI | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Nici's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-15

From Other Seller

Part Number:PM75CLA060
US $48.00 - 50.00
Quantity:

piece

Product Summary

The PM75CLA060 is a MITSUBISHI INTELLIGENT POWER MODULE. The applications of the PM75CLA060 are General purpose inverter, servo drives and other motor controlers.

Parametrics

PM75CLA060 absolute maximum ratings: (1)Collector-Emitter Voltage VCES (VD=15V, VCIN=15V): 600V; (2)Collector Current ±IC (TC=25℃): 75A; (3)Collector Current (Peak) ±ICP (TC=25℃): 150A; (4)Collector Dissipation PC (TC=25℃): 297W; (5)Junction Temperature Tj: -20℃ to +150℃.

Features

PM75CLA060 features: (1)Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved by 1μm fine rule process. For example, typical Vce(sat)=1.5V @Tj=125℃; (2)I adopt the over-temperature conservation by Tj detection of CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM; (3) New small package Reduce the package size by 10%, thickness by 22% from S-DASH series; (4)3φ 75A, 600V Current-sense IGBT type inverter; (5)Monolithic gate drive & protection logic; (6)Detection, protection & status indication circuits for, shortcircuit, over-temperature & under-voltage (P-Fo available from upper arm devices); (7)Acoustic noise-less 5.5kW/7.5kW class inverter application.
