Product Summary
The PM15CZF120 is a MITSUBISHI INTELLIGENT POWER MODULE. It is designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM15CZF120 are Inverters, UPS, Motion/Servo Control, Power Supplies.
Parametrics
PM15CZF120 absolute maximum ratings: (1)Power Device Junction Temperature Tj: -20℃ to 150℃; (2)Storage Temperature Tstg: -40℃ to 125℃; (3)Case Operating Temperature TC: -20℃ to 100℃; (4)Mounting Torque, M5 Mounting Screws: 1.47 ~ 1.96 N.m; (5)Module Weight (Typical): 80 Grams; (6)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V,Inverter Part) VCC(prot.): 800 Volts; (7)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.
Features
PM15CZF120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit, Over Current, Over Temperature, Under Voltage.

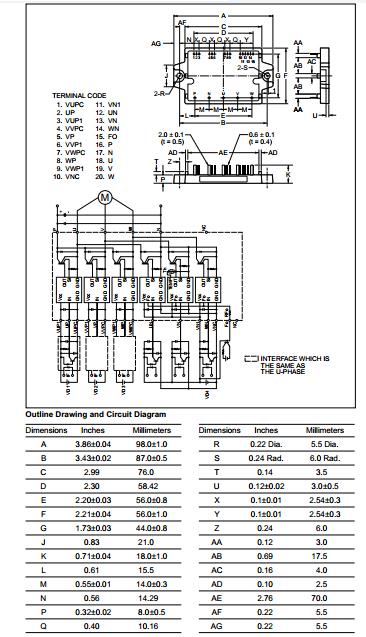

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

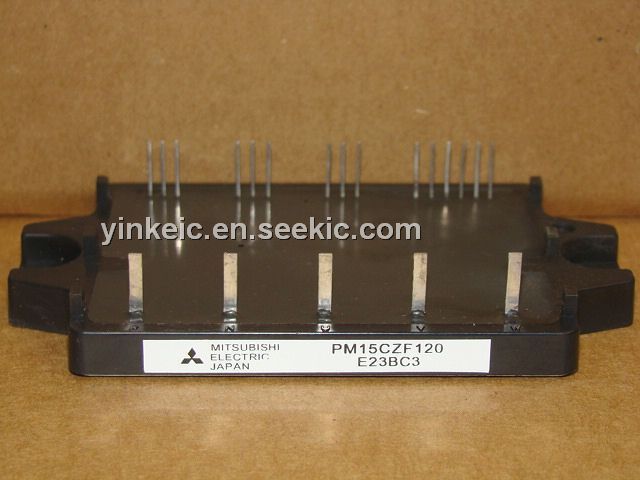

![]() PM15CZF120 |
![]() |
![]() MOD IPM 6PAC 1200V 15A |
![]() Data Sheet |
![]() Negotiable |
|
||||||
