PM100RSD120

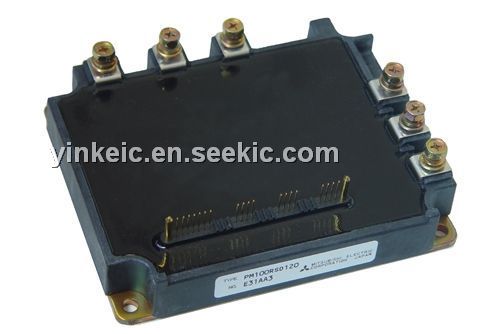

PM100RSD120, MITSUBISHI INTELLIGENT POWER MODULE, 1200V, 100A, 595W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $48.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	50.00 / Piece
11 ~ 20 :	49.00 / Piece
21 ~ 30 :	48.00 / Piece

PartNumber:: PM100RSD120

Brand:: MITSUBISHI - MITSUBISHI | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Nici's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-15

From Other Seller

Part Number:PM100RSD120
US $48.00 - 50.00
PM100RSD120

US $48.00 - 50.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PM100RSD120 is a MITSUBISHI INTELLIGENT POWER MODULE. The applications of the PM100RSD120 are General purpose inverter, servo drives and other motor controlers.

Parametrics

PM100RSD120 absolute maximum ratings: (1)Collector-Emitter Voltage VCES (VD=15V, VCIN=15V): 1200V; (2)Collector Current ±IC (TC=25℃): 100A; (3)Collector Current (Peak) ±ICP (TC=25℃): 200A; (4)Collector Dissipation PC (TC=25℃): 595W; (5)Junction Temperature Tj: -20℃ to +150℃.

Features

PM100RSD120 features: (1)Adopting new 4th generation IGBT (CSTBT) chip, which performance is improved by 1μm fine rule process; (2) Using new Diode which is designed to get soft reverse recovery characteristics; (3) Keeping the package compatibility. The layout/position of both terminal pin and mounting hole is same as S-series 3rd generation IPM; (4)3φ 100A, 1200V Current-sense IGBT for 15kHz switching; (5)50A, 1200V Current-sense regenerative brake IGBT; (6) Monolithic gate drive & protection logic; (7) Detection, protection & status indication circuits for overcurrent, short-circuit, over-temperature & under-voltage (P-Fo available from upper leg devices).
