Product Summary

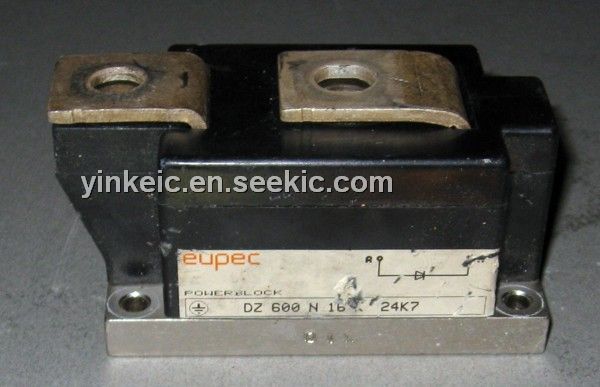

The DZ600N16K is a Rectifier Diode Module.

Parametrics

DZ600N16K absolute maximum ratings: (1)repetitive peak reverse voltages VRRM (Tvj = -40℃... Tvj max): 1600V; (2)non-repetitive peak reverse voltage VRSM (Tvj = +25℃... Tvj max): 1700V; (3)maximum RMS on-state current IFRMSM: 1150A; (4)average on-state current IFAVM (TC = 100/84℃): 600/735A; (5)surge current FSM (Tvj = 25℃, tp = 10 ms): 22A; (6)I2t-value I2t (Tvj = 25℃, tp = 10 ms): 2420A2s.

Features

DZ600N16K features: (1)on-state voltage vF (Tvj = Tvj max , iF = 2200A): max.1.40V; (2)threshold voltage V(TO) (Tvj = Tvj max): 0.75V; (3)slope resistance rT (Tvj = Tvj max): 0.215mΩ; (4)reverse current iR (Tvj = Tvj max , vR = VRRM): max.40mA; (5)insulation test voltage VISOL (RMS, f = 50 Hz, t = 1 sec): 3.6kV.

Diagrams

DZ600N16K dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DZ600N16K
DZ600N16K
Infineon Technologies
Discrete Semiconductor Modules 1600V 1150A
Data Sheet
0-1: $128.39
1-10: $115.55
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DZ600N08K
DZ600N08K
Infineon Technologies
Discrete Semiconductor Modules 0.8KV 735A
Data Sheet
0-1: $110.66
1-10: $99.59
DZ600N12K
DZ600N12K
Infineon Technologies
Discrete Semiconductor Modules 1200V 1150A
Data Sheet
0-1: $116.85
1-10: $105.16
DZ600N14K
DZ600N14K
Infineon Technologies
Discrete Semiconductor Modules 1400V 1150A
Data Sheet
0-1: $122.23
1-10: $110.01
DZ600N16K
DZ600N16K
Infineon Technologies
Discrete Semiconductor Modules 1600V 1150A
Data Sheet
0-1: $128.39
1-10: $115.55
DZ600N18K
DZ600N18K
Infineon Technologies
Discrete Semiconductor Modules 1800V 1150A
Data Sheet
0-1: $134.53
1-10: $121.08
