Product Summary

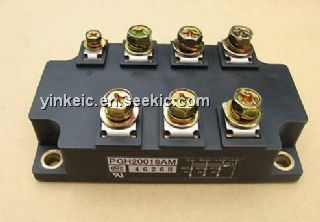

The PGH20016AM is a THYRISTOR MODULE. The applications of the PGH20016AM are Converter For UPS , VVVF and Servo Motor Drive Amplifier.

Parametrics

PGH20016AM absolute maximum ratings: (1) Average Rectified Output Current IO(AV): 200A; (2) Operating JunctionTemperature Range Tjw(Tj>125℃, Can not be Biased for Thyristor): -40℃ to +125℃; (3) Storage Temperature Range Tstg: -40℃ to +125℃; (4) Isoration Voltage Viso (Base Plate to Terminals, AC1min.): 2500V; (5) Mounting torque Ftor (Greased M6 Screw): 2.5 to 3.5N×m.

Features

PGH20016AM features: (1)Isolated Base ; (2)3 Phase Converter with Rush-Current Controllable Thyristor ; (3)High Surge Capability ; (4)UL Recognized, File No. E187184.

Diagrams

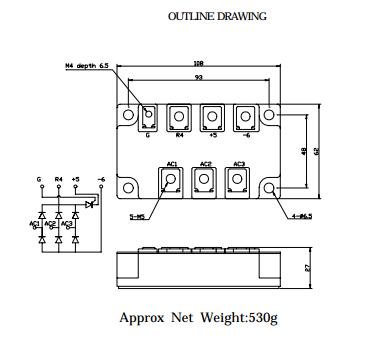

PGH20016AM dimension figure
