Product Summary
The MIG75Q202H is a TOSHIBA Intelligent Power Module.
Parametrics
MIG75Q202H absolute maximum ratings: (1)Supply voltage VCC: 900V; (2)Collector current (Tc=25℃) IC: 75A; (3)Collector power dissipation PC: 400W; (4)Junction temperature Tj: 150℃; (5)Storage temperature TSTG: -40℃ to +125℃.
Features

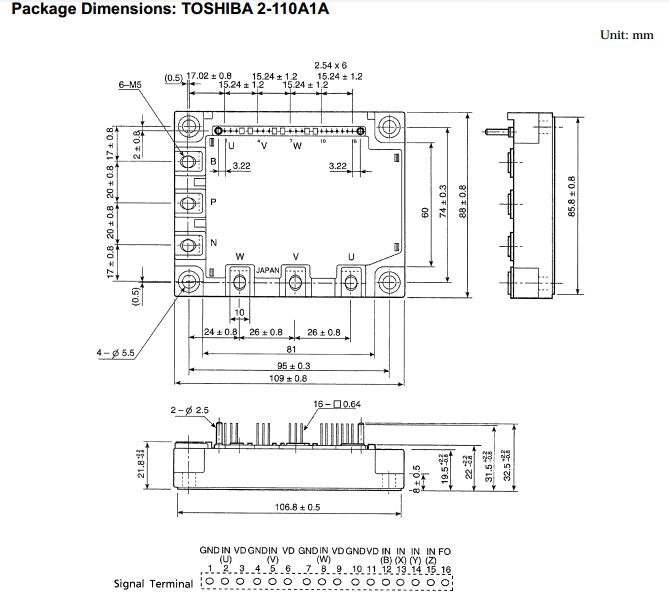

MIG75Q202H features: (1)Integrates inverter, brake power circuits & control circuits (IGBT drive units, protection units for over-current, realtime-current-control (RTC), under-voltage & over-temperature) in one ; (2)package; (3)The electrodes are isolated from case; (4)High speed type IGBT : VCE (sat) = 3.5 V (Max), toff = 2.8 μs (Max), trr = 0.21 μs (Max); (5)Package dimensions: TOSHIBA 2-110A1A; (6)Weight: 520g.
