Product Summary

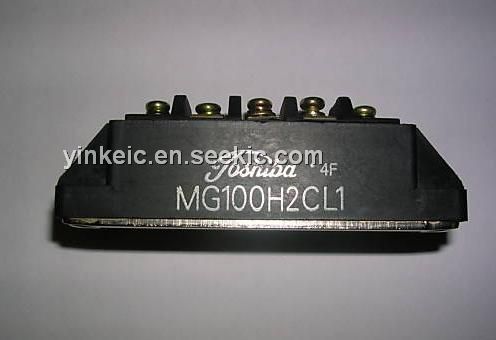

The MG100H2CL1 is a TOSHIBA GTR Module. It is a High Power Switching Application.

Parametrics

MG100H2CL1 absolute maximum ratings: (1)Collector-Base voltage VCBO: 600V; (2)Emitter-Base voltage VEBO: 6V; (3)Collector Current IC: 100A; (4)Collector power dissipation (Tc=25℃) PC: 400W; (5)Junction temperature Tj: 150℃; (6)Storage temperature TSTG: -40℃ to +125℃; (7)Isolation Voltage VIsol: 2500V(AC 1min).

Features

MG100H2CL1 features: (1)The collector is isolated from case; (2)With Built-in Free Weeling Diodes; (3)High DC Current Gain: hFE = 80 (Min.) (IC=100A); (4)Low Satulation Voltage: VCE (sat)=2V(Max.) (IC=100A); (5)High Speed: tf=4μs(Max.) (IC=100A).

Diagrams

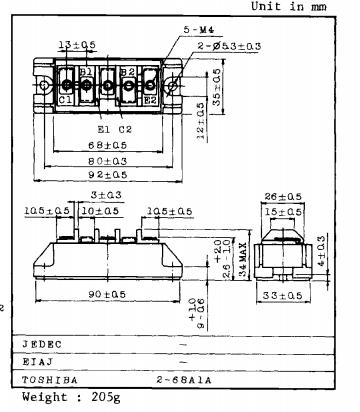

MG100H2CL1 dimension figure
